1084197 Furnace Control Board – 1138-201 | OEM Integrated

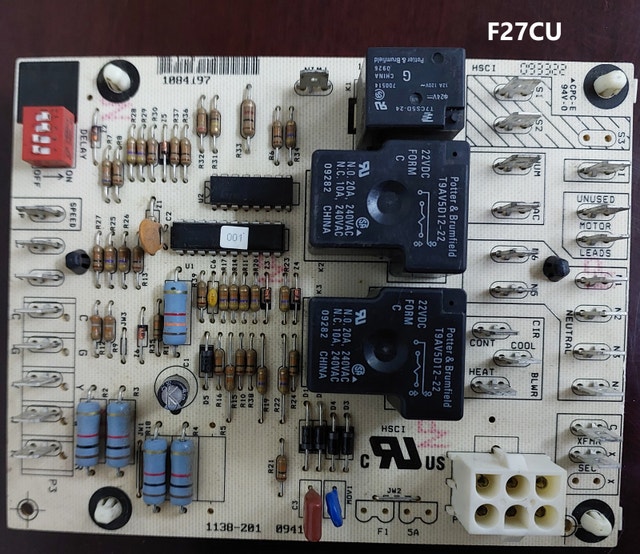

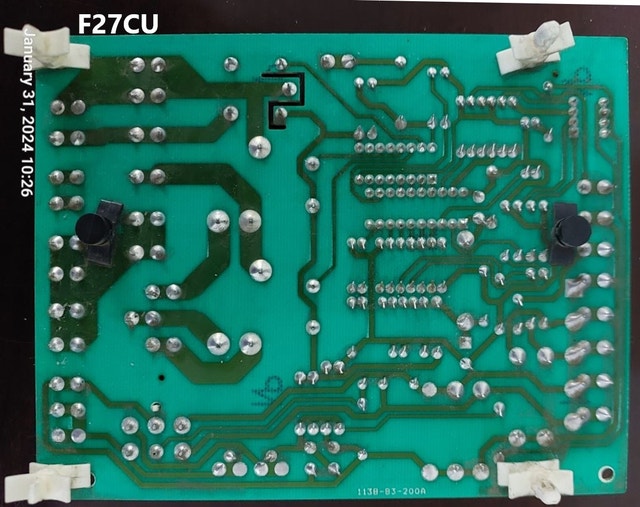

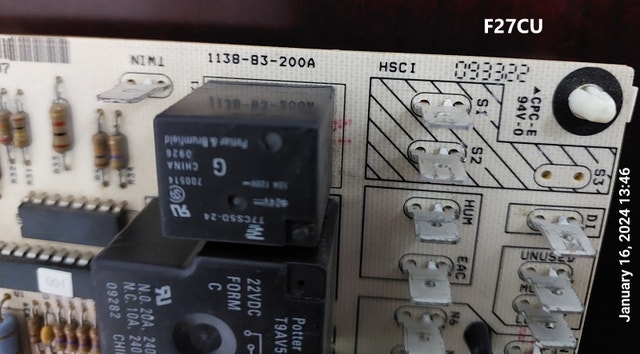

1084197 Furnace Control Board – 1138-201 | OEM Integrated Furnace Control (IFC) Board | Tested Condition: Used – Clean, Tested & Fully Functional Availability: Ready for pickup / Fast response Key Specifications OEM Part Number: 1084197 Board Number: 1138-201 Revision Code: 0941 Printed Code: 093322 Image/Revision Label: F27CU Component Type: Integrated Furnace Control (IFC) Board PCB Rating: UL 94V-0 Flame Rated Fuse: 5 Amp Automotive Blade Fuse (F1) (not included) Thermostat Connections Low-Voltage Terminals: R – 24VAC Power W – Heating Y – Cooling G – Indoor Fan C – Common 120V Output Terminals Accessory Outputs HUM – Humidifier EAC – Electronic Air Cleaner UNUSED MOTOR LEADS Line Voltage S1 S2 S3 Neutral Terminal Bank N1 N2 N3 N5 N6 Blower Motor Speed Connections HEAT COOL CONT (Continuous Fan) CIR BLWR (Circulating Blower) Transformer Connections XFMR SEC C X ⚙️ Main Components 1 × Potter & Brumfield T7CS5D-24 Relay 24VDC Coil 12A @ 120VAC 2 × Potter & Brumfield T9AV5D12-22 Relays Form C Contacts 20A NO @ 240VAC 10A NC @ 240VAC Heavy-duty blower and accessory switching Dual microcontroller ICs Adjustable 4-position DELAY DIP switch High-power resistor network Replaceable 5A automotive blade fuse 6-pin wiring harness connector Features Genuine OEM integrated furnace control board Adjustable blower off-delay settings via DIP switches Controls heating, cooling, and continuous fan operation Dedicated humidifier and electronic air cleaner outputs Heavy-duty blower relay design Replaceable 5A fuse for circuit protection Compatible with PSC blower motor systems Compatibility Commonly used in select residential gas furnaces. ⚠️ Before purchasing, verify: OEM Part Number: 1084197 Board Number: 1138-201 Connector layout Furnace model Terminal configuration Applications Gas Furnaces Integrated Furnace Controls (IFC) Heating & Cooling Control Blower Motor Control HVAC System Repairs Why Buy This One? ✔ Genuine OEM furnace control board ✔ Adjustable blower timing (DELAY DIP switches) ✔ Built-in humidifier and electronic air cleaner outputs ✔ Heavy-duty Potter & Brumfield relays ✔ Replaceable 5A fuse ✔ Tested and ready for installation Pickup Toronto / GTA
