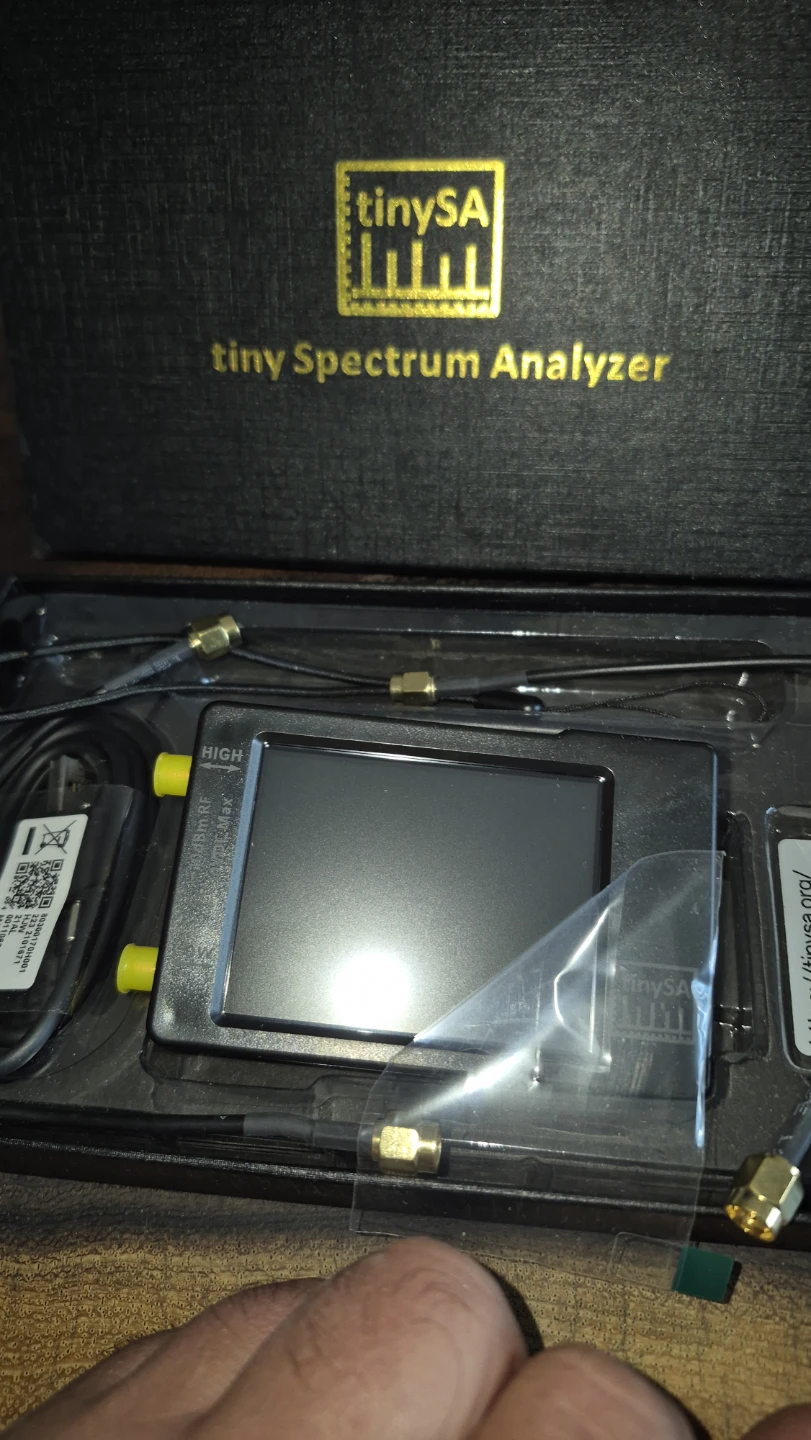

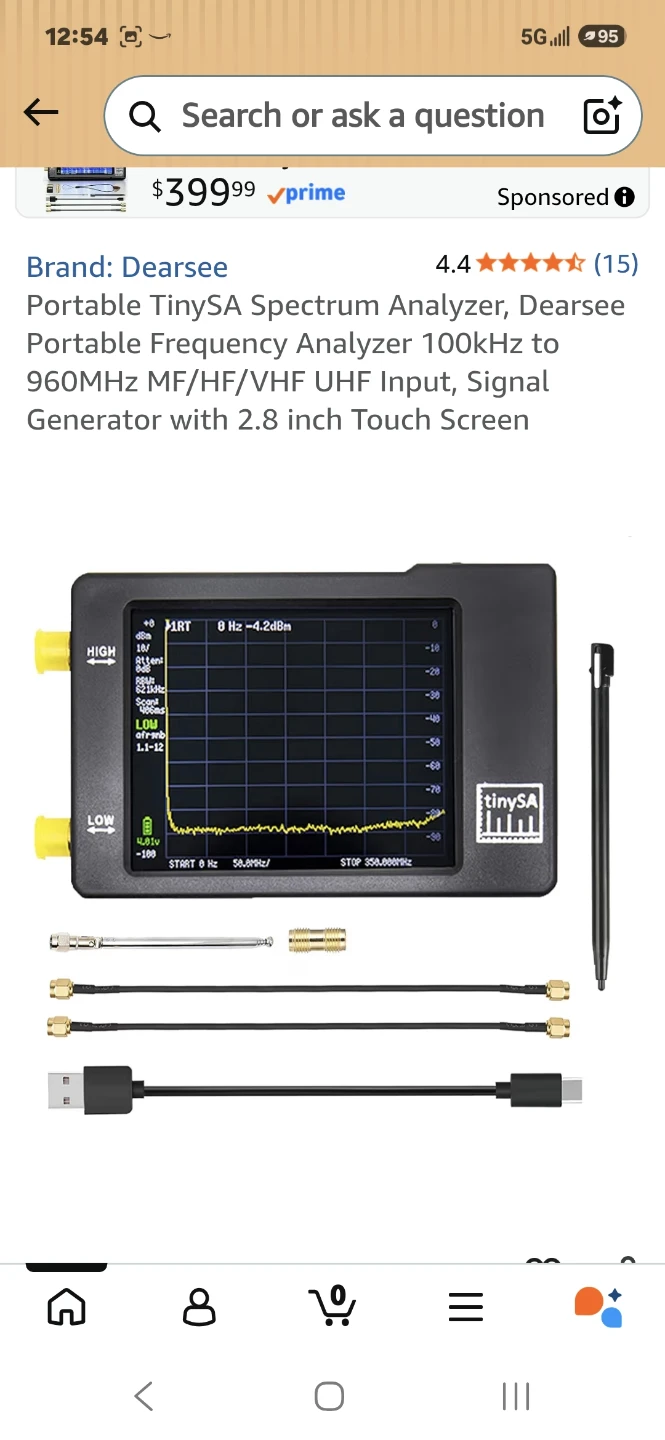

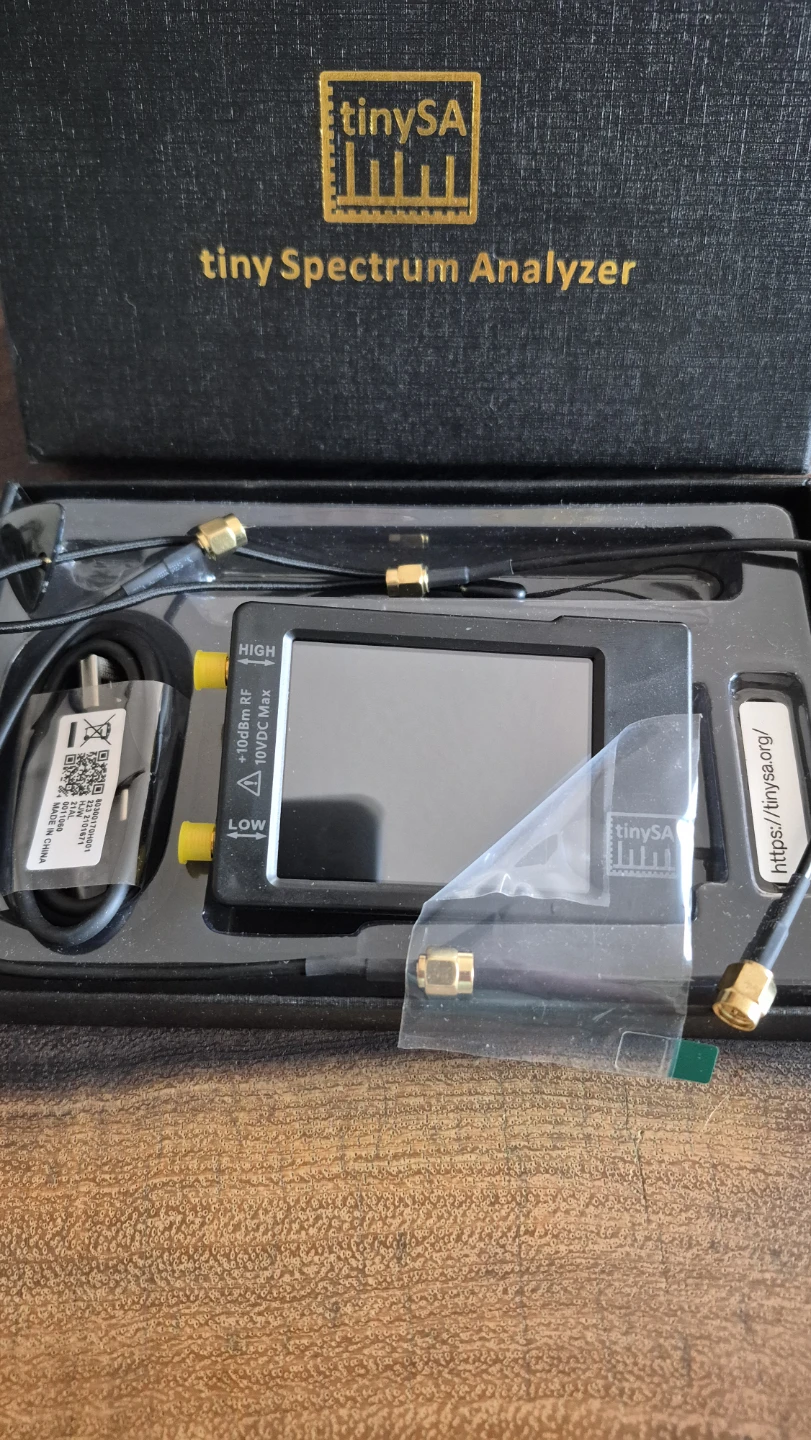

TinySA Portable Spectrum Analyzer

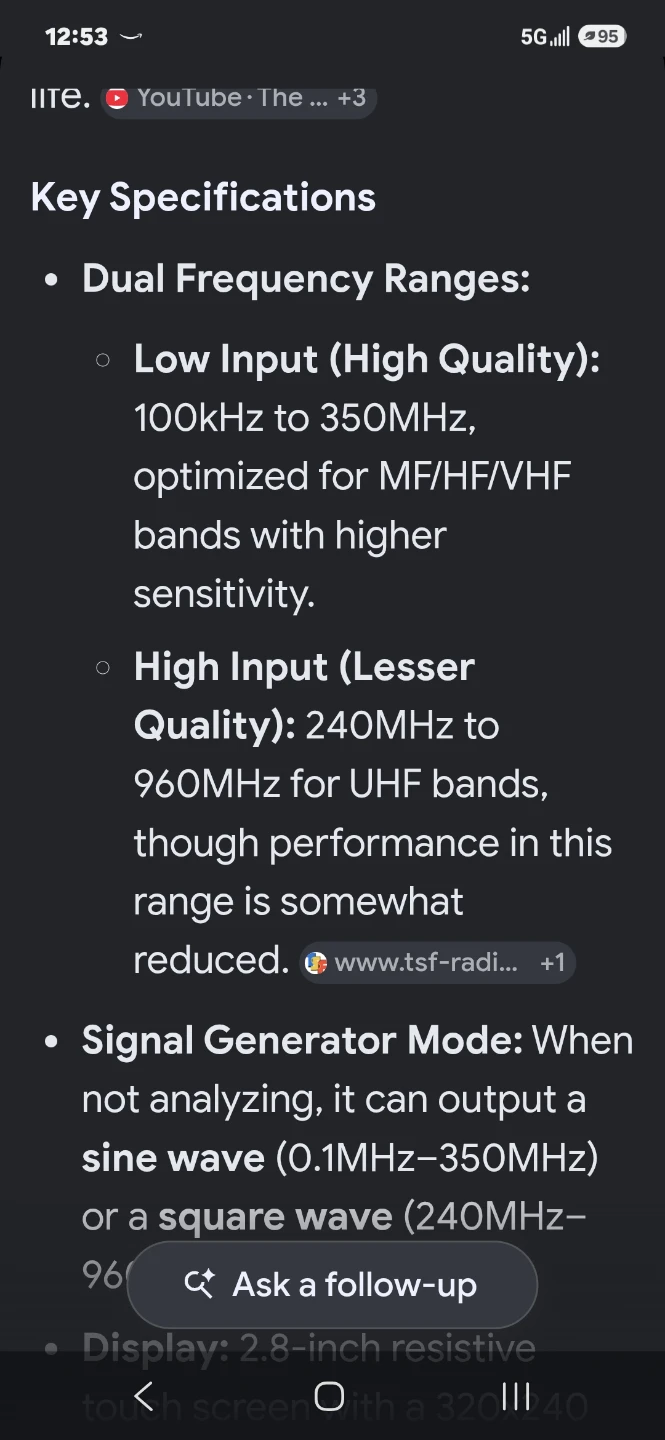

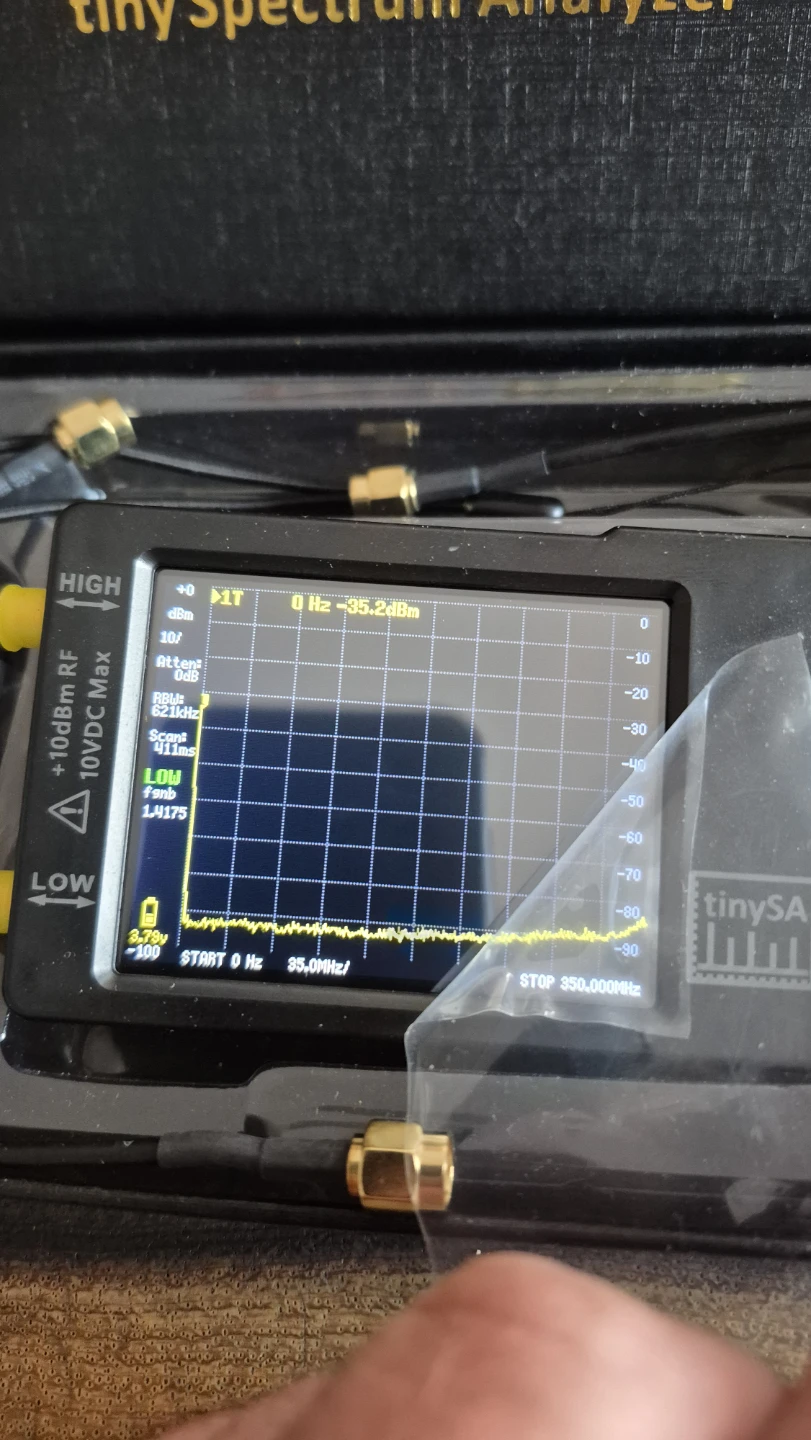

Portable TinySA Spectrum Analyzer by Dearsee. This device offers MF/HF/VHF UHF input from 100kHz to 960MHz. It also includes a signal generator and a 2.8-inch touch screen. This is useful for radio frequency analysis.Spectrum Analyzer with two inputs, Lesser quality UHF input for 240MHz-960MHz, High quality MF/HF/VHF input for 0.1MHZ-350MHz. Switchable resolution bandpass filters for both ranges between 2.6kHz and 640kHz. Color display showing 290 scan points covering up to the full low or high frequency range. When not used as a spectrum analyzer, It can be used as a signal generator, MF/HF/VHF sinus output between 0.1MHZ-350MHz, UHF square wave output between 240MHz-960MHz. Built-in calibration signal generator that is used for automatic self test and low input calibration. 4 input/output modes: Low input mode, High input mode, Low output mode, High output mode. Connect to PC via USB. The driver for Windows will install automatically after connecting to a Windows PC.The driver for Linux is built into the kernel. Two softwares to control the tinySA are available.
