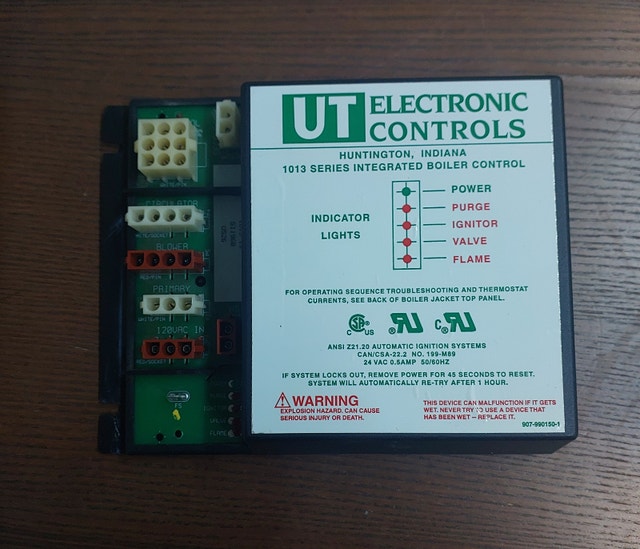

UT ELECTRONICS 1013 SERIES INTEGRATED BOILER CONTROL (1013-10)

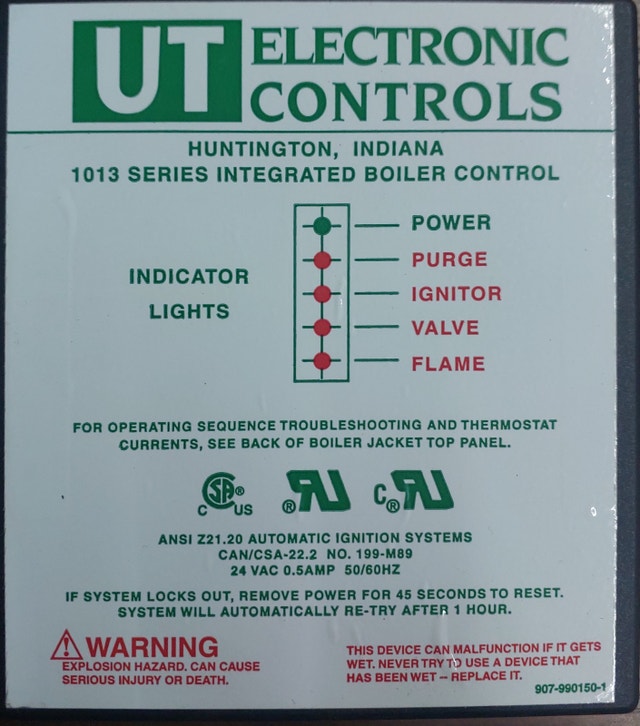

Integrated Boiler Control – UT Electronic Controls 1013 Series (24VAC) Condition: Used – Cleaned and Fully Functional Manufacturer: UT Electronic Controls Series: 1013 Series Part Number: 907-990150-1 Component Type: Integrated Boiler Control / Ignition Control Module Application: Gas Boiler Ignition & Safety Control System Overview: The 1013 Series Integrated Boiler Control manages the ignition sequence and safety monitoring in residential gas boilers. It controls several key functions including: Pre-purge cycle Ignitor operation Gas valve activation Flame sensing and verification If a fault occurs, the system will lock out for safety and must be reset by removing power. Technical Specifications Input Voltage: 24 VAC 0.5 Amp 50/60 Hz Safety Certification: ANSI Z21.20 – Automatic Ignition Systems CAN/CSA-22.2 No. 199-M89 Indicators (LED Status Lights): Power Purge Ignitor Valve Flame Reset Procedure: Remove power for 45 seconds to reset The system automatically retries ignition after 1 hour lockout Typical Applications Residential gas boilers Integrated ignition systems: Boiler flame monitoring and gas valve control Often found in boiler systems using controls from: Dunkirk Boilers Utica Boilers ECR International Key Features: Integrated ignition control for gas boilers LED diagnostic indicators for troubleshooting Automatic safety lockout system Flame sensing safety protection CSA and ANSI certified ignition system Condition: Used - Like new Curbside pick up: Yes
