OKIN® Recliner Bed Motor Actuator Replacement

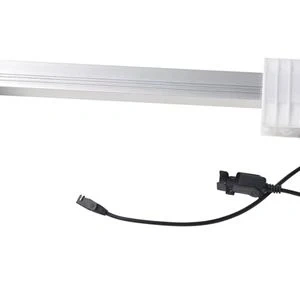

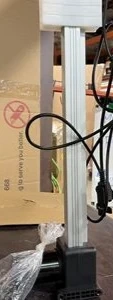

Description APPLICATION: Different actuator/motors are not compatible with frame, the frame has strict demand for actuator/motors' minimum install dimension, stroke and plugs, please check your motor brand and model first. This motor part is suggested to replace OKIN model JLDQ.12.134.329D, and it also can replace JLDQ.12.134.329E/G/J/K/L/P/Q/S/Z, a little difference but not affect use. DESCRIPTION: The actuator motor set is made of 1 motor and 2 connectors, connector with 5-pin round plug and clip is for switch hand control, connector with 2-pin square plug and clip is for power supply. SPECIFICATION: Appearance: black (PA), silver white (aluminum); Stroke: 333mm ; Minimum dimensions (shrink): 134 mm; Maximum dimension: 467 mm; Load: push force: 650N, pull force: 650N. NOTE: Please troubleshoot the switch and power supply first, then check the motor and plug, see if it matches your recliner motor.
