DRV8833 H-Bridge Motor Driver Module

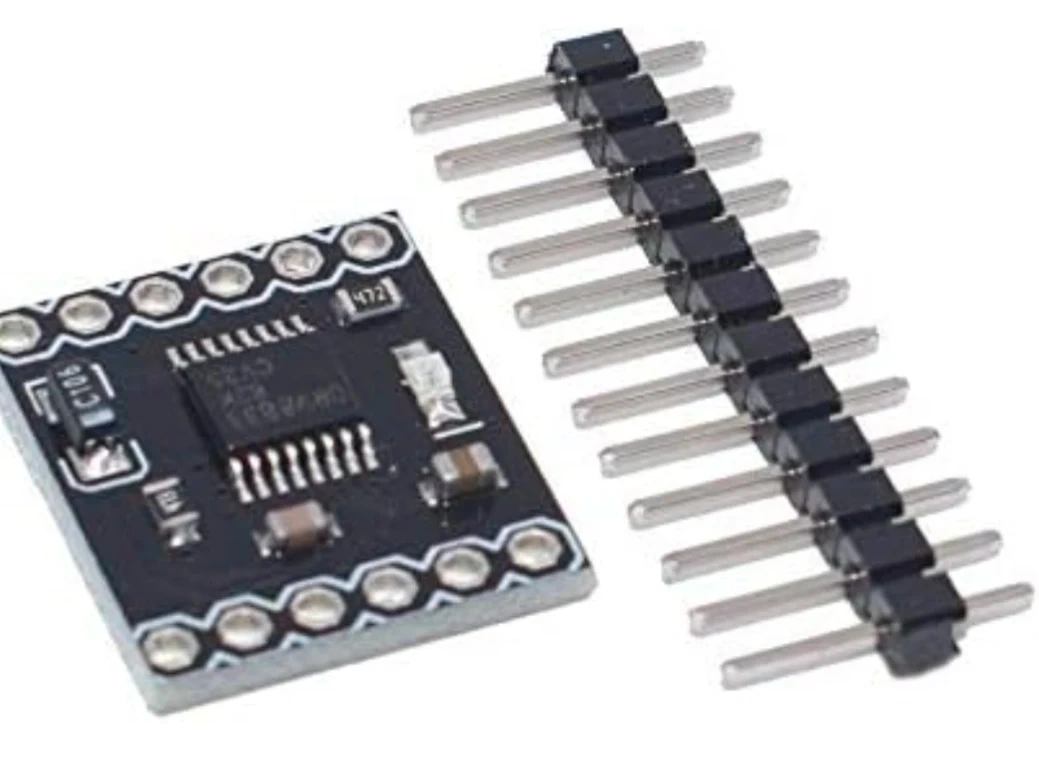

This is a DRV8833 H-bridge motor driver module. It includes the main board and a header strip for connections. The module supports two DC motors or one stepper motor.DRV8833 Motor driver Dual H-Bridge module Dual-H-Bridge Current-Control Motor Driver Can Drive Two DC Motors or One Stepper Motor Low MOSFET ON-Resistance: HS + LS 360 mΩ Output Current (at VM = 5 V, 25°C) 1.5-A RMS, 2-A Peak per H-Bridge in PWP and RTY Package Options 500-mA RMS, 2-A Peak per H-Bridge in PW Package Option Outputs can be in Parallel for 3-A RMS, 4-A Peak (PWP and RTY) 1-A RMS, 4-A Peak (PW) Wide Power Supply Voltage Range: 2.7 to 10.8 V
