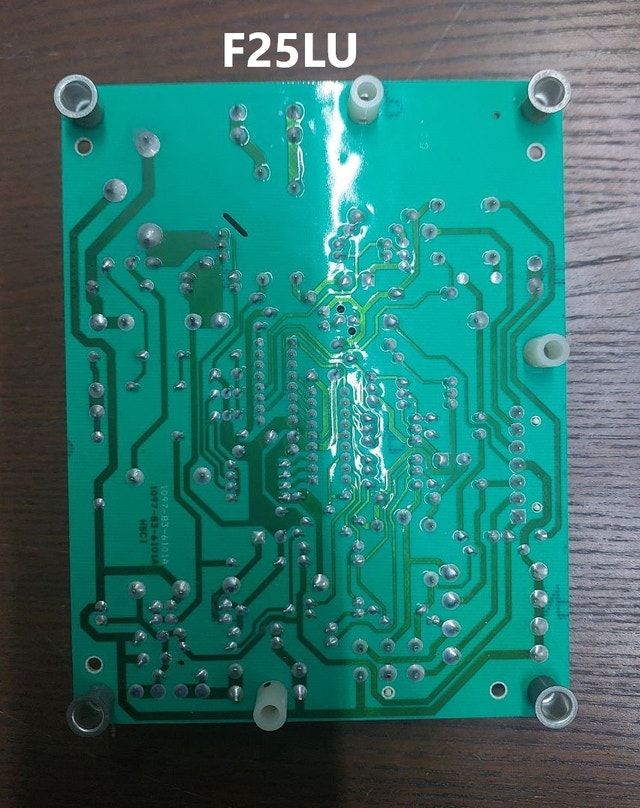

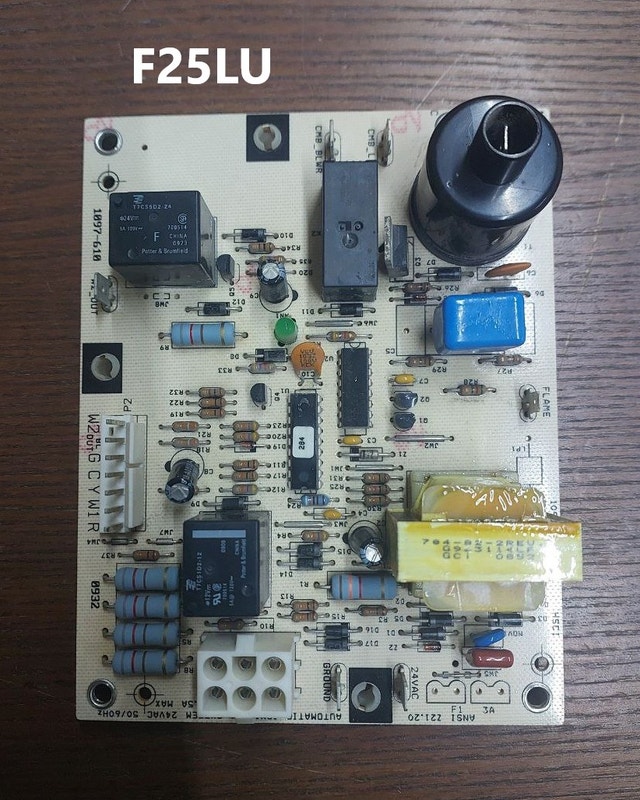

1097-610 Automatic Ignition Control Board – ANSI Z21.20

1097-610 Automatic Ignition Control Board – 24VAC | ANSI Z21.20 | Spark Ignition Module | Tested Condition: Used – Clean, Tested & Fully Functional Availability: Ready for pickup / Fast response Key Specifications Board Number: 1097-610 Revision / Code: 0932 Component Type: Automatic Ignition Control Board Ignition Type: Spark Ignition System Rating: 24VAC, 50/60Hz Maximum Current: 0.5A Certification: ANSI Z21.20 Automatic Ignition System Main Components Relays: Potter & Brumfield T7CS5D2-24 24VDC Coil 5A @ 120VAC Potter & Brumfield T7CS1D2-12 12VDC Coil 5A @ 120VAC Heavy-duty blower/motor control relay Spark Ignition Circuit: High-voltage spark ignition coil Spark plug wire connection for ignition electrode Transformer / Inductor: 704-B2-2REU Additional markings: 09311 ALF GCI 0892 Integrated Electronics: Dual microcontroller ICs High-voltage ignition circuitry Four high-power precision resistors Features Electronic spark ignition control Automatic burner ignition sequence Flame safety monitoring Blower relay control Heavy-duty industrial-grade components ANSI Z21.20 certified ignition system Compatibility Suitable for select: Gas Furnaces Unit Heaters Commercial Heating Equipment Spark Ignition Systems ⚠️ Before purchasing, verify: Board number (1097-610) Connector locations Ignition type (Spark Ignition) Mounting dimensions Equipment model compatibility Applications Gas Furnace Ignition Systems Spark Ignition Controls Commercial HVAC Equipment Heating System Repairs Burner Management Controls Why Buy This One? ✔ Genuine OEM automatic ignition control board ✔ ANSI Z21.20 certified ✔ Integrated spark ignition transformer ✔ High-quality Potter & Brumfield relays ✔ Tested and ready for installation ✔ Excellent replacement for discontinued ignition modules Pickup Toronto / GTA
