EG4 12000XP - 12K XP Inverter Generator New in Box

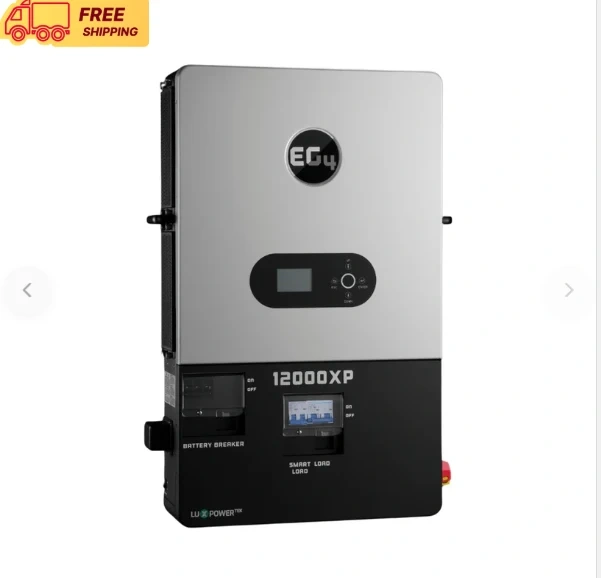

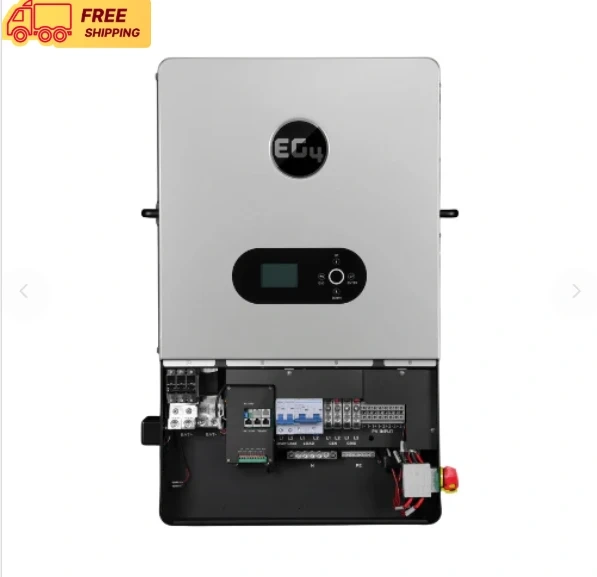

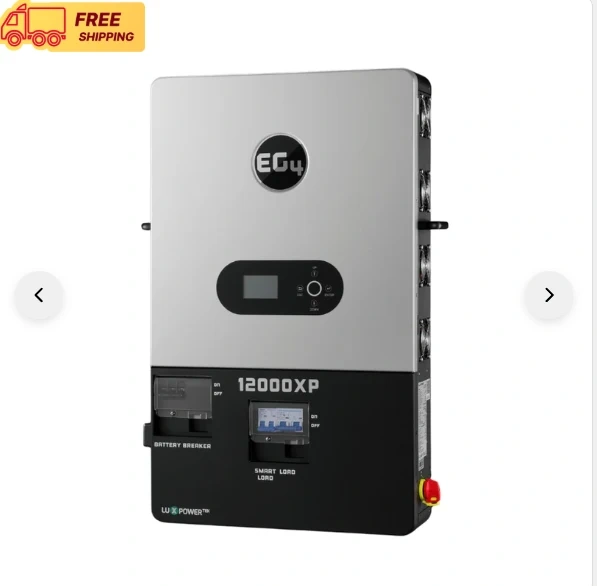

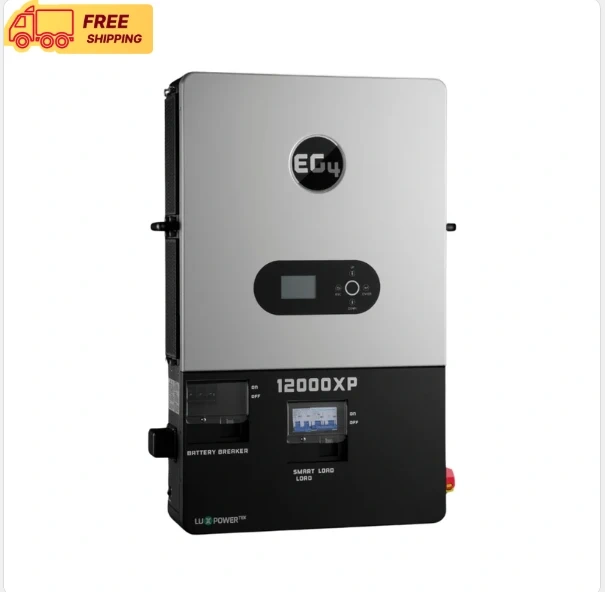

EG4 12000XP - 12K XP Inverter, Brand New in the Box/Sealed Features: The EG4 12000XP is a 12kW AC, split-phase, all-in-one off-grid inverter with grid charge capability, designed for residential and small commercial use. It supports 24kW of DC solar PV through two 35 Amp MPPTs, generating 12kW of power @120/240 VAC while allowing 24kW (100 Amps) of utility or 90 Amps from a generator. The 24kW max DC solar input allows for up to 12kW of DC power to rapidly charge batteries even when supporting AC loads up to 12kW. With a 100 Amp bypass for seamless power transitions, the 12000XP ensures reliable operation off-grid or during outages. Equipped with a generator port, the 12000XP features 2-wire start/stop auto-start and a programmable Smart Port for smart load control or AC coupling. It can be paralleled with up to six units for a total output of 72kW. It’s a cost-effective solution for those not requiring grid sellback and with EG4 batteries, provides true whole-home backup. Key Features: High Input Voltage (480VDC): Supports high-voltage input, reducing the need for extensive cabling and allowing for up to 24kW PV input without a combiner box. Dual MPPT Design: Ensures optimal solar energy utilization, providing efficiency and stability under varying sunlight conditions. Plug-in Wi-Fi Capability: Monitor and adjust settings remotely using the EG4 app or Monitor system, adding convenience and control from any location. Closed-Loop Communication: Seamlessly integrates with EG4 48V batteries and other supported brands, offering enhanced system performance and safety. Rapid Shut Down Compliance: Equipped with NEC 690.12-ready rapid shutdown (RSD) capabilities for compliance and peace of mind in critical situations. Performance Highlights: 12kW Power Output with Surge Capacity up to 18kW: Delivers robust, consistent power with the ability to manage heavy-duty appliances and equipment in off-grid settings. Expandable Power Options: Parallel up to six units to reach a 72kW system, providing the flexibility to scale power output as needed. High Efficiency Rates: Enjoy an impressive 99% MPPT efficiency, maximizing energy harvest and minimizing energy loss. Technical Specifications: AC Input: 120/240VAC | 50/60 Hz Max Continuous Output: 12kW Surge Capacity: 18kW (5 seconds) Battery Compatibility: Lead-Acid/Lithium, with a recommended minimum of 400Ah per inverter Operating Temperature: 32°F – 113°F (0°C – 45°C) Protection Features: PV Reverse Polarity, Over-Voltage, and Surge Protection Warranty: 5 years Ideal Applications: Residential Off-Grid Living: Perfect for homes wanting to break free from grid reliance. Remote Worksites and Cabins: Ensures a steady power supply, even in isolated locations. Commercial and Industrial Use: Robust enough to handle demanding off-grid requirements.
