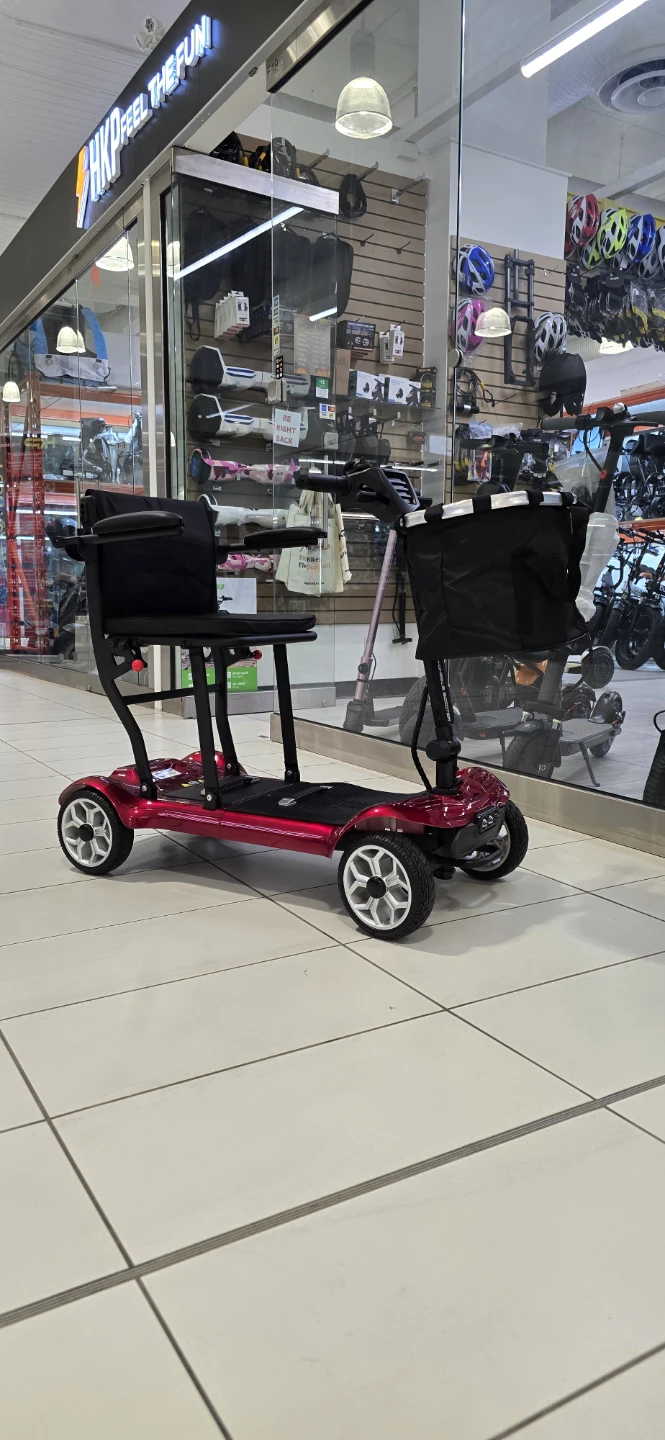

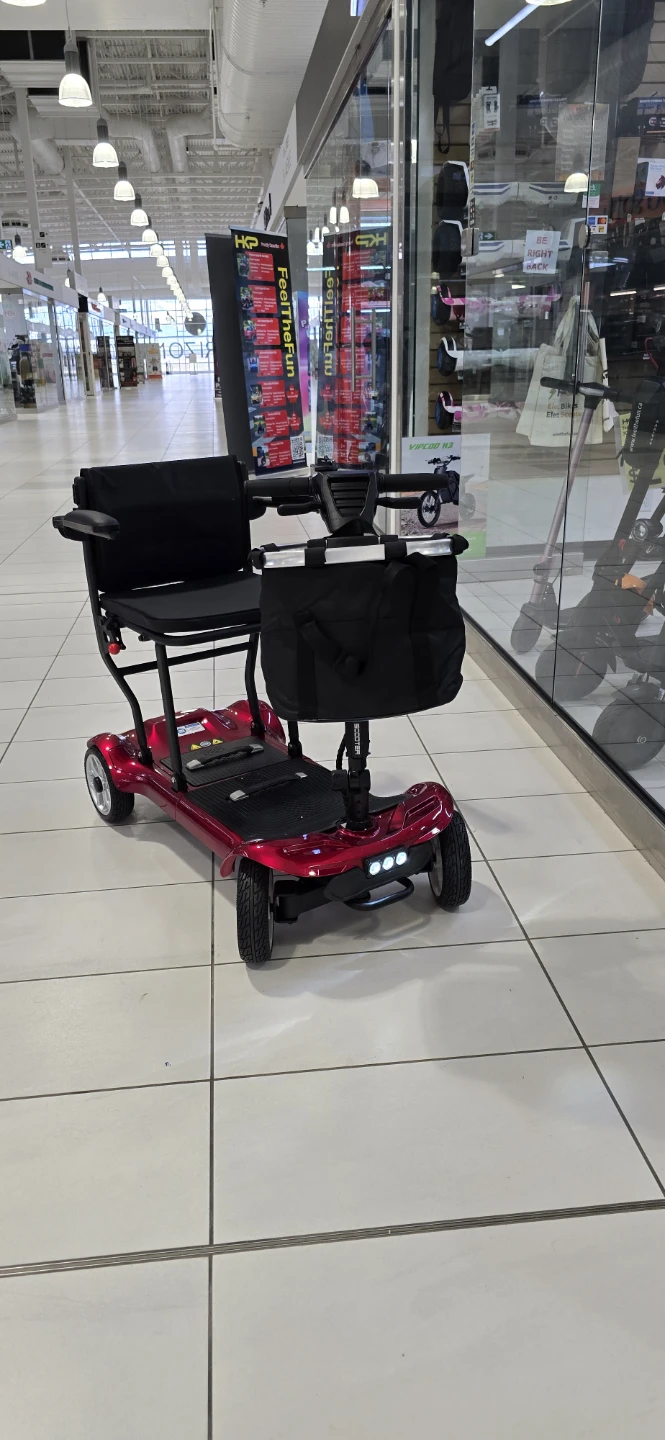

Red Mobility Scooter with Basket

Model Number: YL-985 Type: Foldable Mobility Scooter Date on Spec Sheet: Oct 08, 2024 Maximum User Weight: 120 kg (264 lbs) Total Weight: 19.8 kg Heaviest Part Weight: 6 kg Maximum Speed: 7 km/h Estimated Range: 16 km per charge Obstacle Climbing Ability: 40 mm Maximum Climbing Angle: 9° Static Stability: Uphill: 15° Downhill: 15° Sideways: 15° Dimensions Specification Measurement Overall Length 985 mm Overall Width 500 mm Overall Height 985 mm Folded Length 500 mm Folded Width 360 mm Folded Height 985 mm Minimum Turning Radius 1100 mm Ground Clearance 87 mm Seating Specifications Feature Measurement Effective Seat Depth 360 mm Effective Seat Width 385 mm Seat Height (Front Edge) 555–560 mm Seat Plane Angle 1° Backrest Angle 10° Backrest Height 280 mm Backrest Width 540 mm Footrest to Seat Distance 485 mm Leg to Seat Surface Angle 100° Armrest to Seat Distance 220 mm Steering & Structure Feature Measurement Handlebar Width 178 mm Horizontal Axle Location 19–27 mm Performance Notes Compact folding design for transport and storage Lightweight structure suitable for travel use Designed for indoor and outdoor mobility Tight turning radius for maneuvering in smaller spaces
