HK42FZ0401417 Carrier Furnace Board – CEPL130948-02 - F29CU

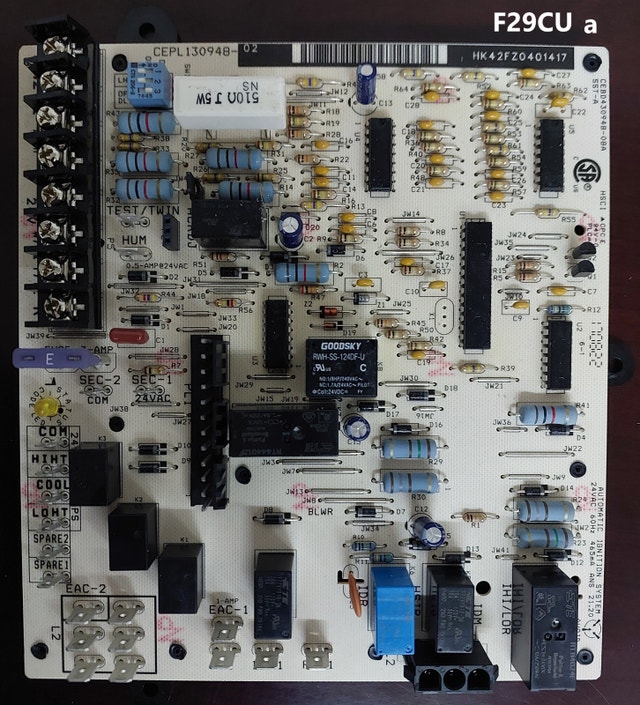

HK42FZ0401417 Carrier Furnace Control Board – CEPL130948-02 | CEBD430948-08A | OEM Integrated Furnace Control (IFC) Board | Tested Condition: Used – Clean, Tested & Fully Functional Key Specifications Manufacturer: Carrier OEM Part Number: HK42FZ0401417 PCB Number: CEPL130948-02 Board Number: CEBD430948-08A SST-A Manufacturing Code: 170822 6-1 Image Label: F29CU Component Type: Integrated Furnace Control (IFC) Board Ignition System: Automatic Ignition System Voltage: 24VAC Frequency: 60Hz Control Current: 465mA Certification: ANSI Z21.20 Fuse: 3 Amp Automotive Blade Fuse Terminal Connections Thermostat / Low Voltage Terminals Standard residential thermostat connections: R – 24VAC Power C – Common W – Heat Call Y – Cooling Call G – Fan Control Additional thermostat terminals available depending on configuration Blower Motor Speed Terminals COM – Motor Common HI HT – High Heat Speed COOL – Cooling Speed LO HT – Low Heat Speed SPARE 1 SPARE 2 Transformer Connections SEC-1 (24VAC) SEC-2 COM Accessory Connections HUM – Humidifier Output EAC-1 – Electronic Air Cleaner Output EAC-2 / L2 – Accessory Neutral Diagnostic / Harness Connections PL1 – Main Harness Connector TEST/TWIN – Furnace Diagnostic / Twinning Connection Bottom 3-pin Harness Connector Major Components Relays GOODSKY RWH-SS-124DF-U 24VDC Coil NO: 1/8HP @ 240VAC NC: 1.7A @ 24VAC Pilot Duty Potter & Brumfield RT444012F Heavy-duty switching relay TE Connectivity / Schrack T77V1D10-24 10A @ 120VAC TE / Potter & Brumfield RT114024F 12A @ 250VAC Other Components 510Ω 5W Ceramic Resistor 3-Position Blower Off Delay DIP Switch Five DIP Integrated Circuits Yellow Status LED Diagnostic Indicator Replaceable 3A Fuse Features ✔ Genuine Carrier OEM furnace control board ✔ Controls heating, cooling, and blower operation ✔ Built-in diagnostic LED indicator ✔ Adjustable blower off-delay settings ✔ Supports furnace twinning applications ✔ Humidifier and electronic air cleaner outputs ✔ Replaceable automotive-style fuse ✔ Tested and ready for installation Compatibility Direct replacement numbers: HK42FZ0401417 CEPL130948-02 CEBD430948-08A SST-A Commonly found in: Carrier furnaces Bryant furnaces Payne furnaces ⚠️ Always confirm: Furnace model number Board number Connector layout Terminal arrangement before purchase. Why Buy This One? ✔ Exact OEM Carrier replacement board ✔ Multiple searchable part numbers included ✔ Common Carrier/Bryant/Payne platform ✔ Technician-friendly replacement ✔ Tested before sale Pickup Toronto / GTA
