Gas Valve Specifications – White-Rodgers 36J24 Type - GCV090

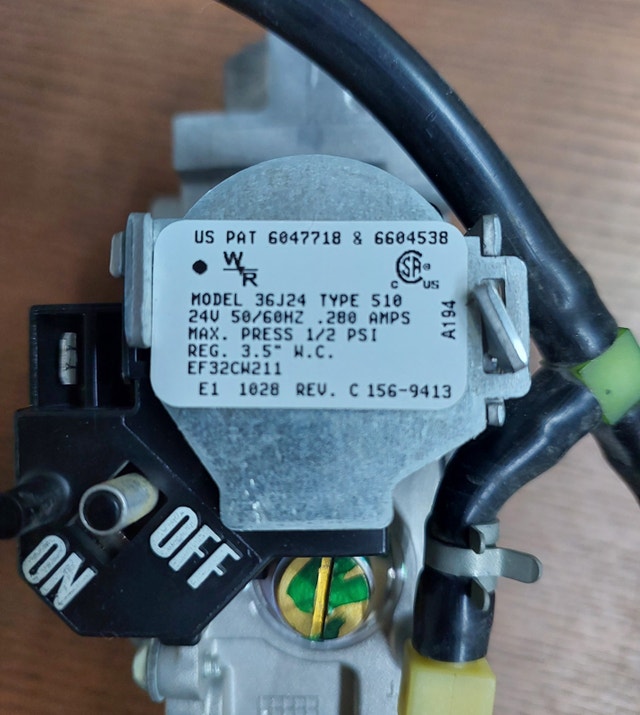

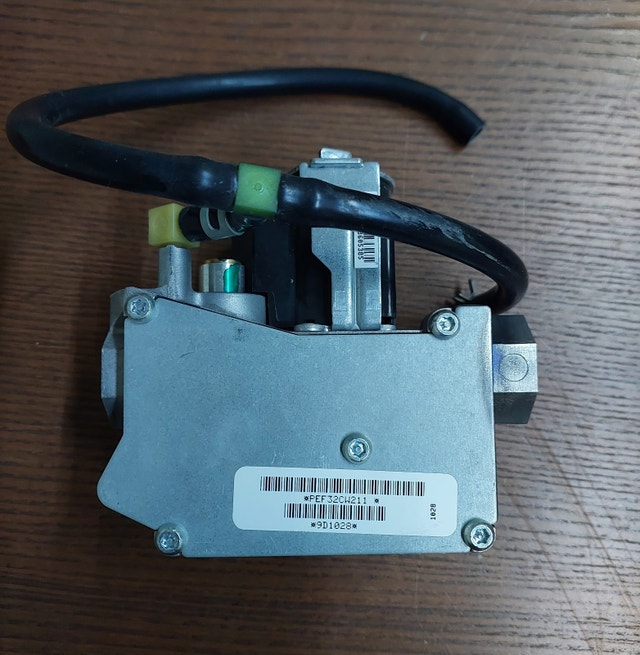

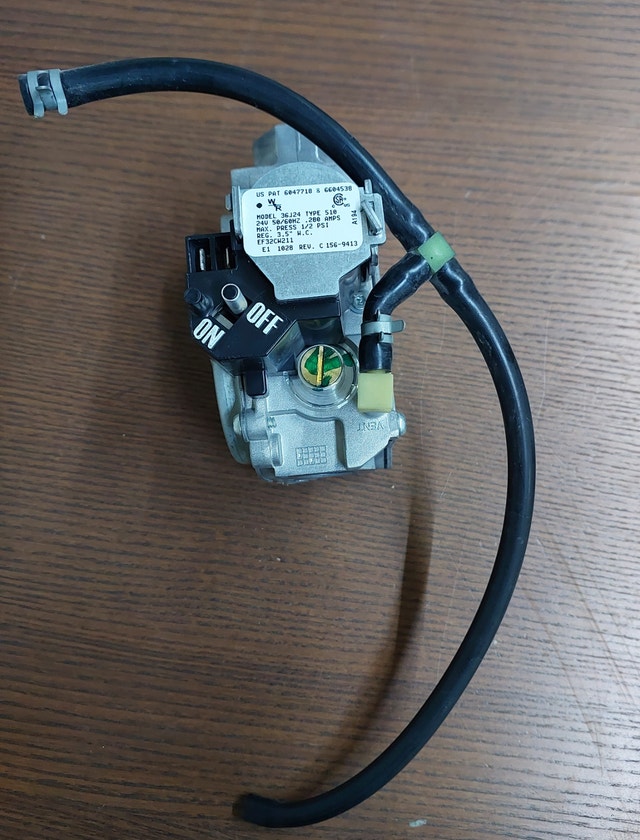

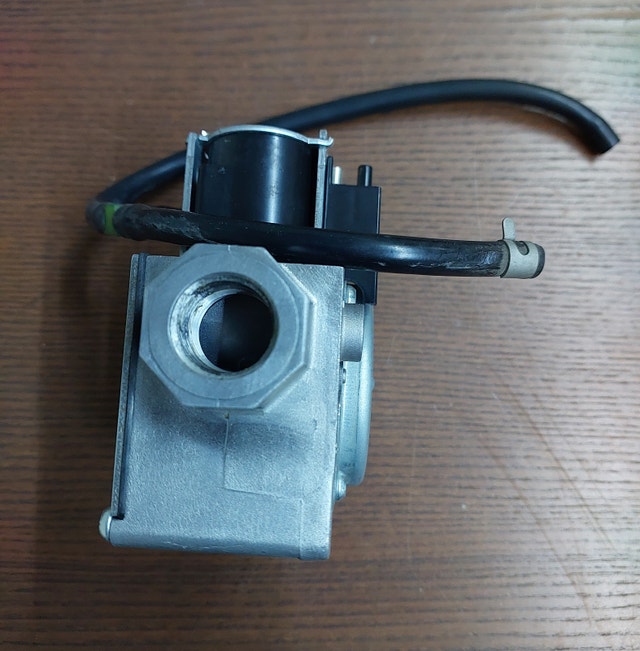

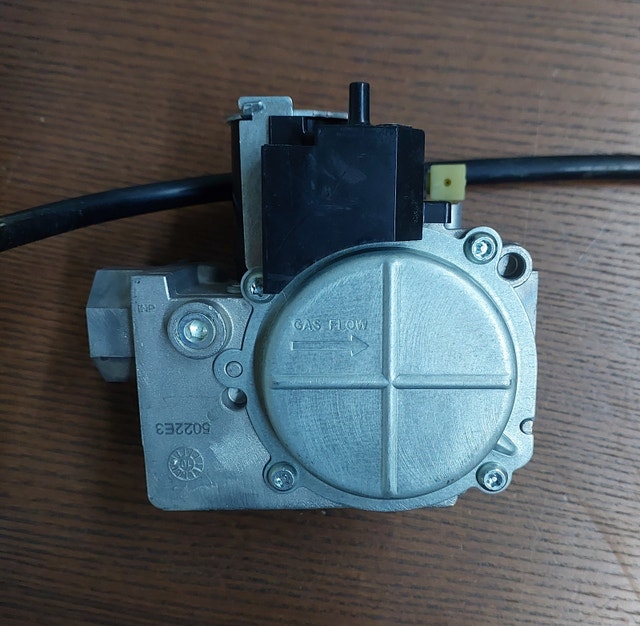

Gas Valve Specifications – White-Rodgers 36J24 Type 510 Condition: Used – Cleaned and Fully Functional Model: 36J24 Manufacturer: White-Rodgers (Emerson) Product Type: Combination Gas Control Valve – Single-Stage Type: 510 Power Input: 24V AC, 50/60 Hz Current Rating: 0.280 A Maximum Inlet Pressure: 1/2 PSI Regulator Output Pressure: 3.5" WC Patents: US PAT 6,047,718 & 6,604,538 Revision: Rev. C Internal / OEM Codes: • A194 • EF32CW211 • 156-9413 Lot / Date Code: 1028 Markings: SP / C / US Electrical & Connectivity Notes: Designed for standard 24V AC HVAC control circuits Single-stage gas valve with integrated pressure regulator Compatible with direct ignition furnace systems Manual ON/OFF control with built-in safety shutoff Common Applications: Residential gas furnaces Forced-air heating systems using White-Rodgers 36J series valves OEM replacement for compatible Emerson / White-Rodgers applications Condition: Used - Like new Curbside pick up: Yes
