Gas Valve Specifications – White-Rodgers 36J24-214 - GCV014

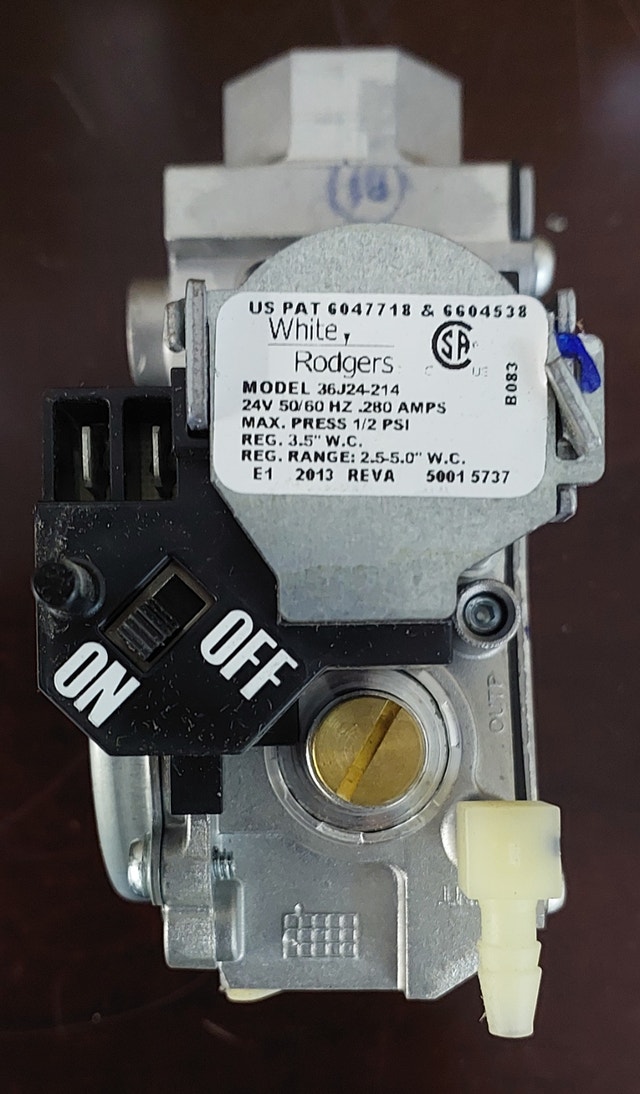

Gas Valve Specifications – White-Rodgers 36J24-214 Model Number: 36J24-214 Manufacturer: White-Rodgers (Emerson) Valve Type: Single-Stage Gas Valve Control Voltage: 24V AC Frequency: 50/60 Hz Current Draw: 0.280 A Gas Type: Natural Gas (convertible to LP with kit) BTU Capacity: Varies by appliance (verify with system BTU rating) Regulator Setting (Factory): 3.5" WC Adjustable Pressure Range: 2.5" – 5.0" WC Maximum Inlet Pressure: 1/2 PSI Mounting Orientation: Horizontal preferred Country of Origin: Likely Mexico (Emerson standard) Date Code / Revision: 2013, REV A Other Codes / Stamps: • US PAT: 6047718 & G604538 • Batch/Serial: 8083 / 5001 5737 • Design Markings: "SP", "E1", "White-Rodgers" Compatible Replacement Models • White-Rodgers 36J24-210, 36J24-213 • Robertshaw 720-402 or 720-472 (verify specs) • Honeywell VR8200A2132 • Suitable universal single-stage valves with same specs Compatible Furnace Brands • Goodman • Amana • Keeprite • Coleman • Lennox Condition: New Curbside pick up: Yes
