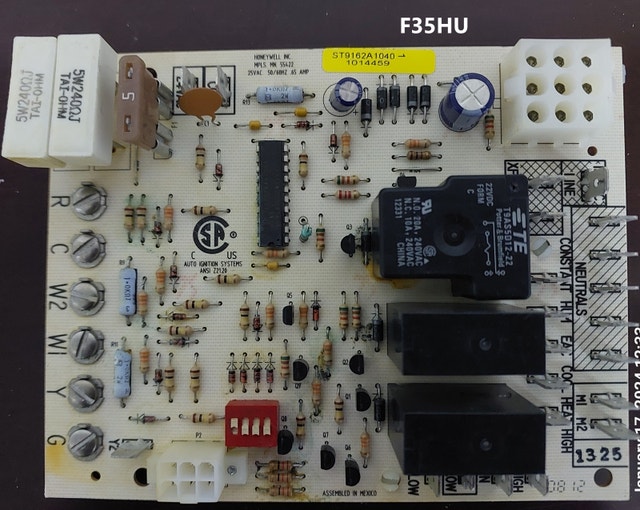

Honeywell ST9162A1040 Furnace Control Board | 1014459

Honeywell ST9162A1040 Furnace Control Board | 1014459 | OEM Two-Stage Integrated Furnace Control (IFC) Board | Tested Condition: Used – Tested & Fully Functional Availability: Ready for Pickup Key Specifications Manufacturer: Honeywell OEM Part Number: ST9162A1040 Secondary Part Number: 1014459 Board Numbers: 1325, 0812 Made In: Mexico Image Label: F35HU Component Type: Integrated Furnace Control (IFC) Board System Type: Two-Stage Gas Furnace Control Board Control Voltage: 24 VAC Fuse: 5 Amp Automotive Blade Fuse Terminal Connections Thermostat Connections Supports two-stage heating: R – 24VAC Power C – Common W1 – First Stage Heat W2 – Second Stage Heat Y – Cooling G – Indoor Fan Y2 – Second Stage Cooling / Two-Speed Cooling Output Line Voltage Connections LINE NEUTRALS CONSTANT XFMR Blower Speed Connections HEAT COOL HIGH M1 M2 Accessory Outputs HUM – Humidifier EAC – Electronic Air Cleaner Harness Connectors 9-Pin Main Harness Connector 6-Pin Auxiliary Harness Connector Major Components Main Power Relay TE Connectivity / Potter & Brumfield T9AS5D12-22 Coil Voltage: 22VDC Form C Contacts 20A @ 240VAC (Normally Open) 10A @ 240VAC (Normally Closed) Additional Power Relays Two heavy-duty blower/output relays Factory-installed OEM relays Electronic Components Honeywell control microprocessor Four-position configuration DIP switch Dual 240Ω / 5W ceramic power resistors Replaceable 5A automotive fuse High-reliability ignition and blower control circuitry Features ✔ Genuine Honeywell OEM furnace control board ✔ Designed for Two-Stage Gas Furnaces ✔ Supports W1 / W2 staging ✔ Supports Y2 cooling output ✔ Controls heating, cooling, blower, and ignition sequence ✔ Humidifier output ✔ Electronic Air Cleaner output ✔ Replaceable 5A fuse ✔ Tested and ready for installation Compatibility Direct replacement numbers: ST9162A1040 1014459 Commonly found in select two-stage furnaces from: ICP KeepRite Heil Tempstar Comfortmaker Arcoaire ⚠️ Always verify your furnace model number, connector layout, and original board part number before purchasing. Why Buy This Board? Genuine Honeywell OEM replacement Two-stage furnace control (W1/W2) Supports multi-speed blower operation Includes Y2 second-stage cooling connection Ideal for high-efficiency residential furnaces Fully tested and ready to install Pickup Toronto / GTA
