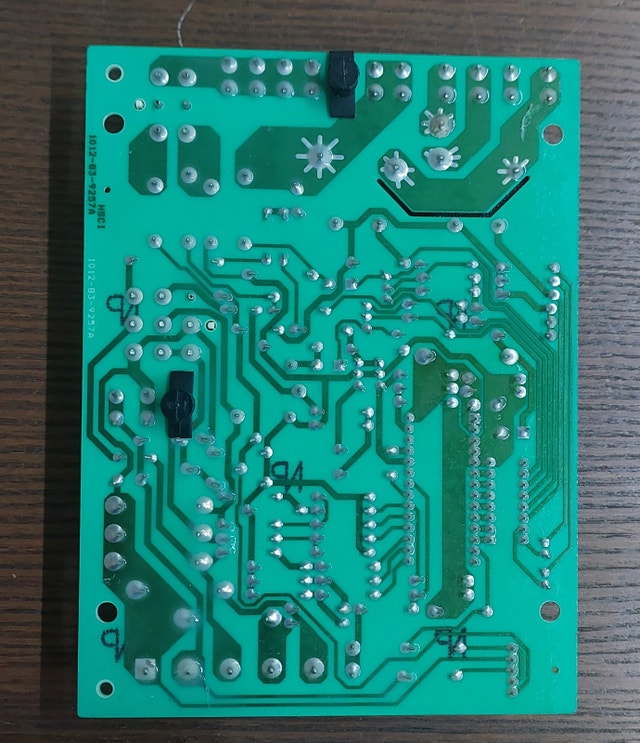

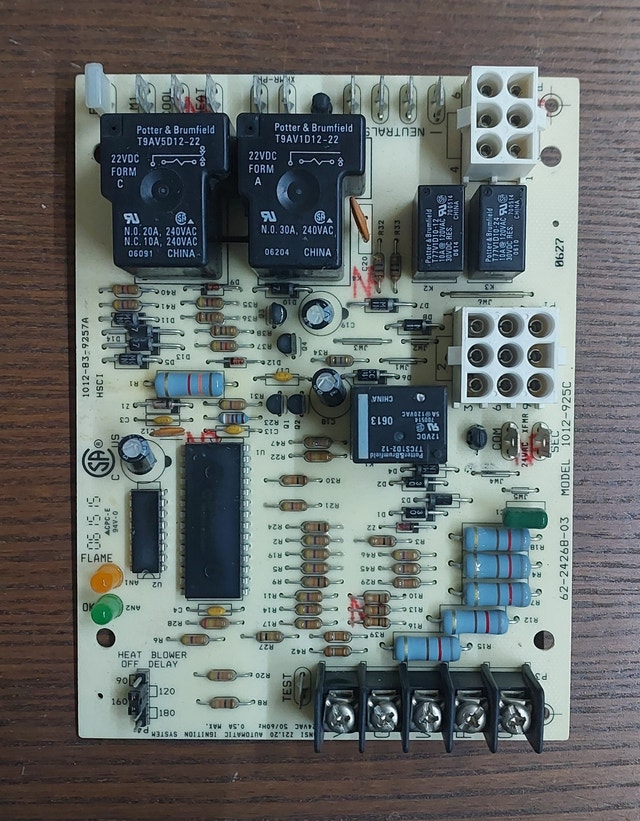

HSCI 62-24268-03 Furnace Control Board – 1012-925C | Rheem/Ruud Replacement Condition: Used – Tested & Fully Functional Availability: Ready for pickup / fast response Key Specifications Brand: HSCI Application: Integrated Furnace Control Board Compatible Brands: Rheem / Ruud Part Numbers: 62-24268-03 1012-925C Board Number: 1012-83-9257A PCB Standard: CPC-E 94V-0 Control Type: Integrated Furnace Control (IFC) Voltage: 24VAC Control System Diagnostics: LED Status Indicators Terminals & Connections Line Voltage / Motor Connections: M1 COOL HEAT XFMR-PRI NEUTRALS Transformer Secondary: COM XFMR SEC (24VAC) Thermostat Connections: 5-Screw Low Voltage Terminal Block: Standard thermostat wiring connections Sensor Connection: FLAME Sensor Input Harness Connectors 6-Pin (2x3) White Nylon Connector 9-Pin (3x3) White Nylon Connector Major Components Relays: Potter & Brumfield T9AV5D12-22 Coil: 22VDC Contacts: Form C N.O.: 20A @ 240VAC N.C.: 10A @ 240VAC Potter & Brumfield T9AV1D12-22 Coil: 22VDC Contacts: Form A N.O.: 30A @ 240VAC Potter & Brumfield T77V1D10-12 Coil: 12VDC Contacts: 10A @ 120VAC Potter & Brumfield T77V1D10-24 Coil: 24VDC Contacts: 10A @ 120VAC Potter & Brumfield T7CS1D2-12 Coil: 12VDC Contacts: 5A @ 120VAC Control Components U1 Main Microcontroller IC U2 Secondary Microcontroller IC Five High-Power Blue Resistors Integrated diagnostic circuitry Diagnostics LED Indicators: FLAME LED (AN1) Flame sensing / ignition status monitoring OK LED (AN2) Control board operation status Compatibility Direct replacement for: HSCI 62-24268-03 Model 1012-925C 1012-83-9257A Commonly found in: Rheem furnaces Ruud furnaces Gas furnace systems using this integrated control platform ⚠️ Always confirm: Board number Connector layout Furnace model Wiring configuration before installation. Why Buy This Board? ✔️ Tested and ready for installation ✔️ OEM-style replacement board ✔️ Saves significant cost compared to new board replacement ✔️ Good option for repair technicians and HVAC contractors Pickup: Toronto / GTA Condition: Used - Like new For Sale By: Owner Curbside pick up: Yes
