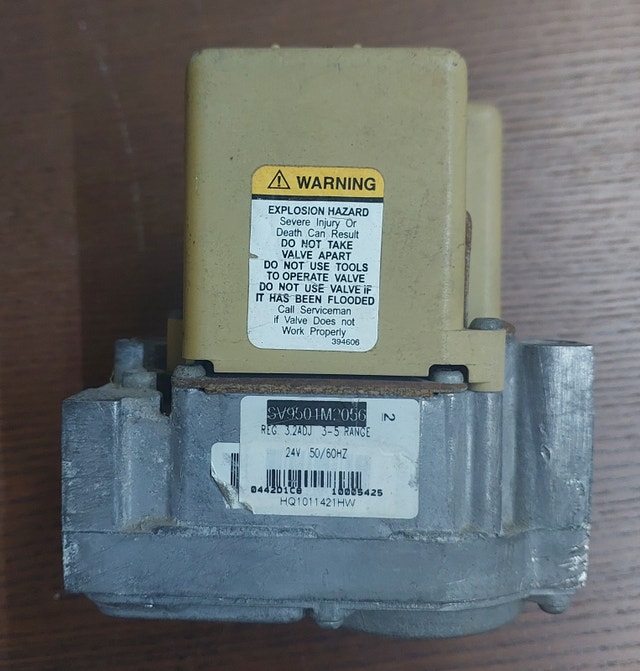

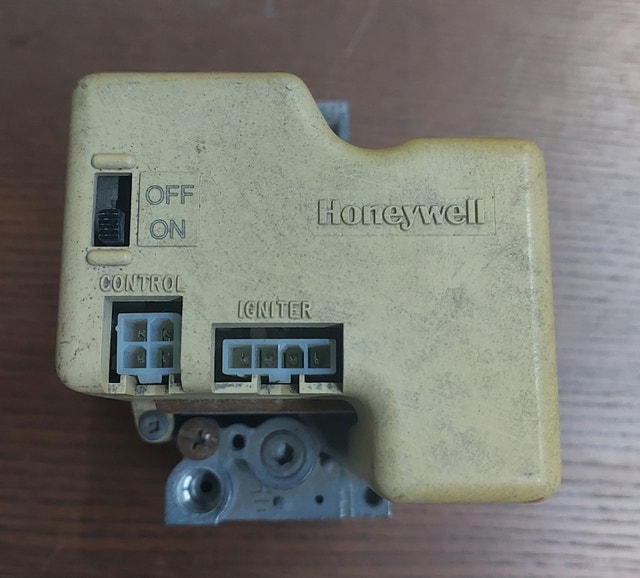

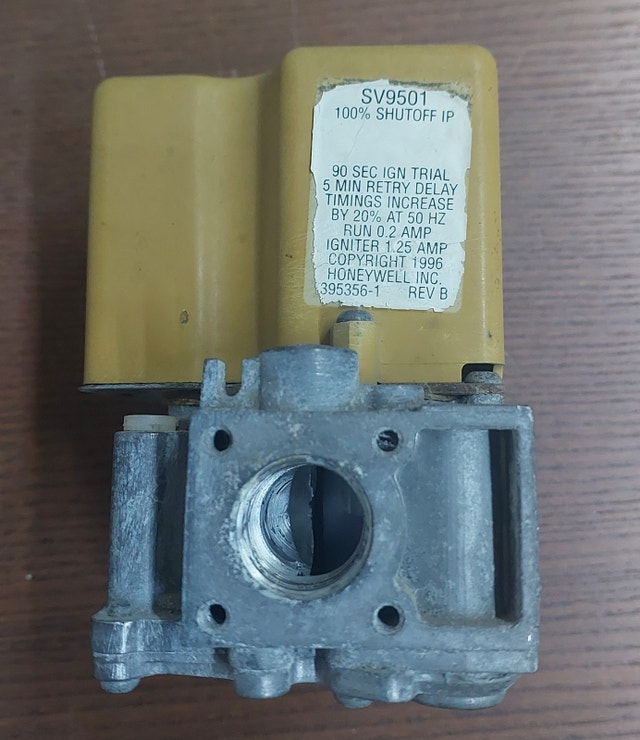

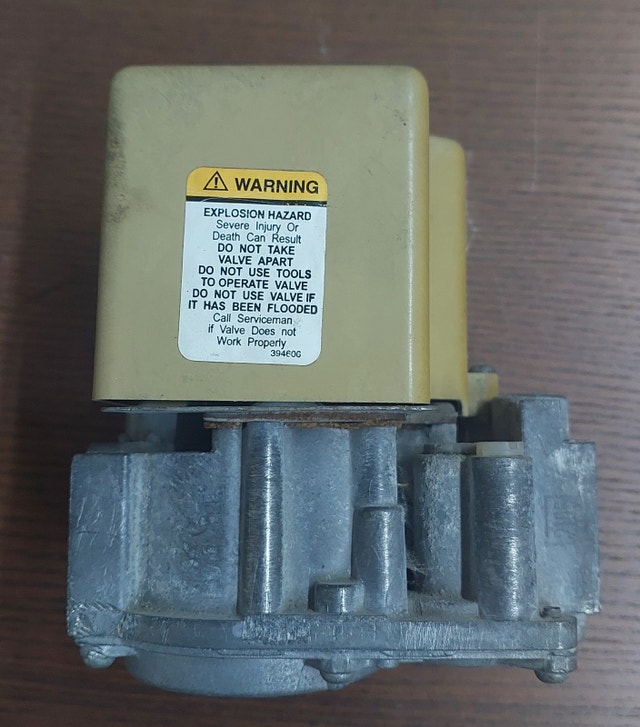

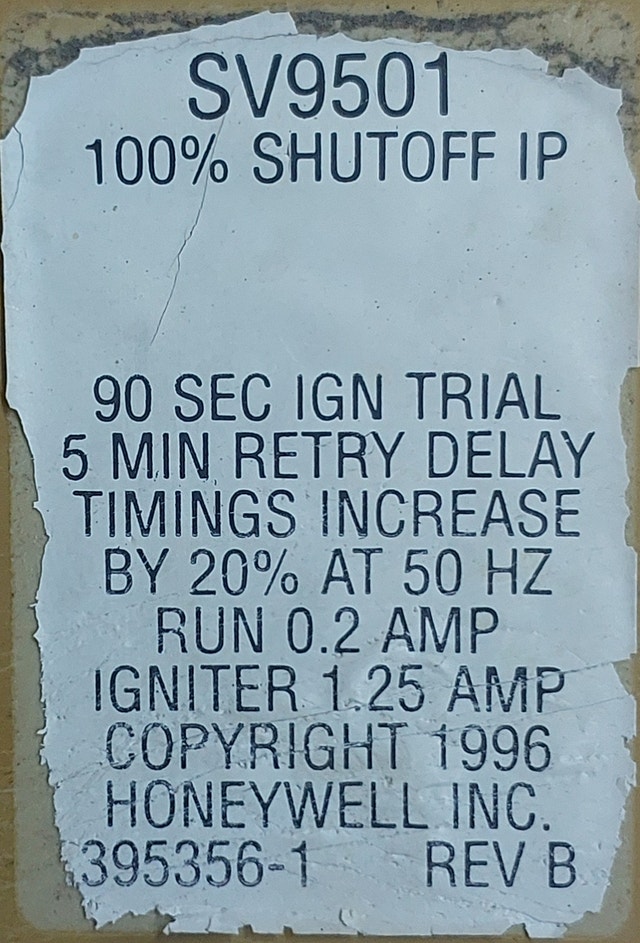

Gas Valve Specifications – Honeywell SV9501 (Integrated Gas Control) Condition: Used – Cleaned and Fully Functional Model: SV9501 Manufacturer: Honeywell Inc. Product Type: Integrated Gas Control Valve – Intermittent Pilot (IP) Stage: Single-Stage Gas Safety Feature: 100% Shutoff Ignition Type: Intermittent Pilot (IP) Electrical Ratings: Control Voltage: 24V AC (Class 2) Run Current: 0.2 Amps Igniter Current: 1.25 Amps Timing Specifications: Ignition Trial Time: 90 Seconds Retry Delay: 5 Minutes Frequency Note: Timings increase by 20% at 50 Hz Identification / Markings: Revision: Rev B Internal / Reference Number: 395356-1 Copyright: 1996 Manufacturer Origin: Honeywell Inc., USA Electrical & Gas Control Notes: Integrated control combines gas valve and ignition module Single-stage on/off gas control Designed for intermittent pilot systems Requires Class 2 24V AC transformer Built-in safety logic with retry and lockout timing Common Applications: Residential gas furnaces with intermittent pilot ignition Gas boilers and unit heaters using Honeywell SV9501 series OEM furnace applications requiring integrated ignition and gas control Condition: Used - Like new For Sale By: Owner Curbside pick up: Yes
