Fasco Draft Inducer Motor – Model A2825

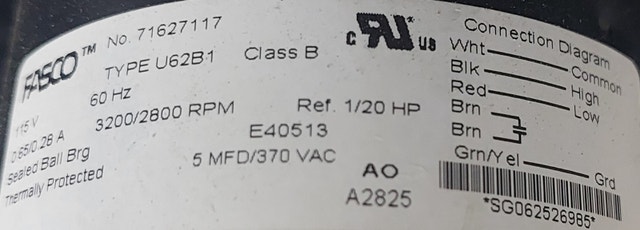

Fasco Draft Inducer Motor – Model A2825 - 71627117 (Type U62B1) Condition: Used – Cleaned and Fully Functional Key Specifications: Manufacturer: Fasco Model Number: A2825 Motor Type: Draft Inducer / Blower Motor Type / Frame: U62B1 TM No.: 71627117 Voltage: 115V AC Frequency: 60 Hz Horsepower: 1/20 HP Speed: 3200 / 2800 RPM (2-Speed) Full Load Amps (FLA): 0.65 / 0.28 A Phase: Single Phase Duty: Air Over (AO) Thermal Protection: Thermally Protected (T.P.) Insulation Class: Class B Capacitor: 5 µF / 370 VAC Bearings: Sealed Ball Bearing UL Code: E40513 Internal Code: SG062526985 Wiring Details: White (WHT): Common Black (BLK): Line Red: High Speed Brown: Low Speed / Capacitor Green/Yellow: Ground Compatible Replacement Models: Direct replacement for Fasco A2825 Cross-reference to U62B1 multi-speed inducer/blower motors with matching specs ⚠️ Always confirm rotation, shaft length, mounting pattern, and capacitor rating before ordering. Common Applications: Gas furnace draft inducer assemblies Small blower applications in HVAC systems Combustion air and exhaust systems Condition: Used - Like new Curbside pick up: Yes
