Gas Valve Specifications – Honeywell SV9501M2056 - GCV012

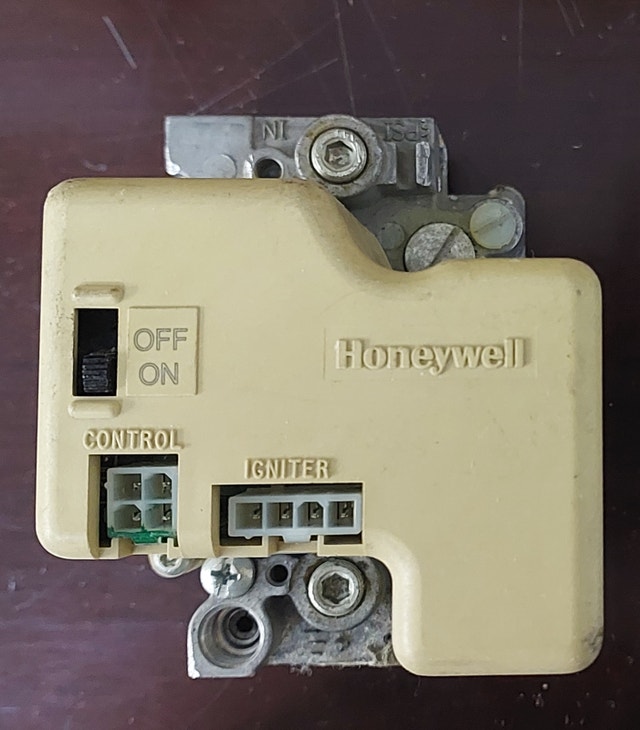

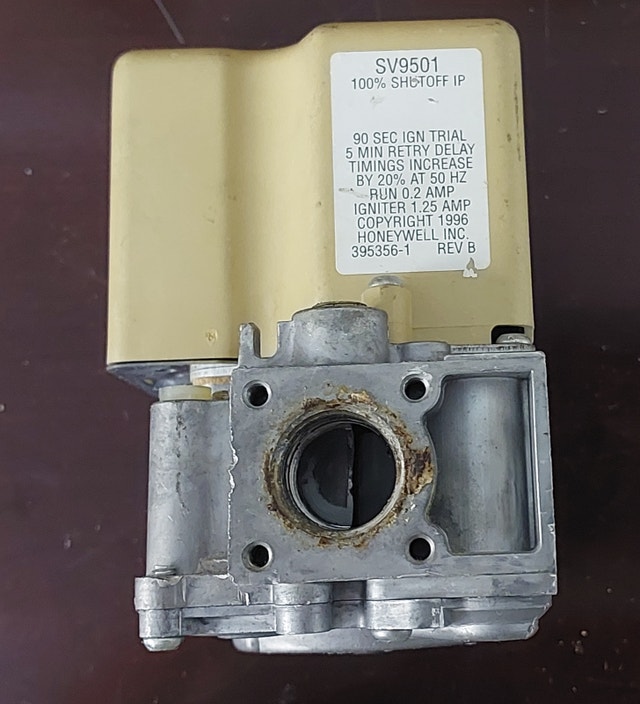

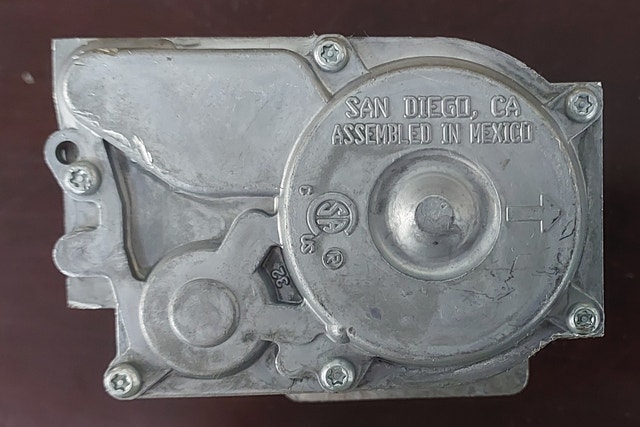

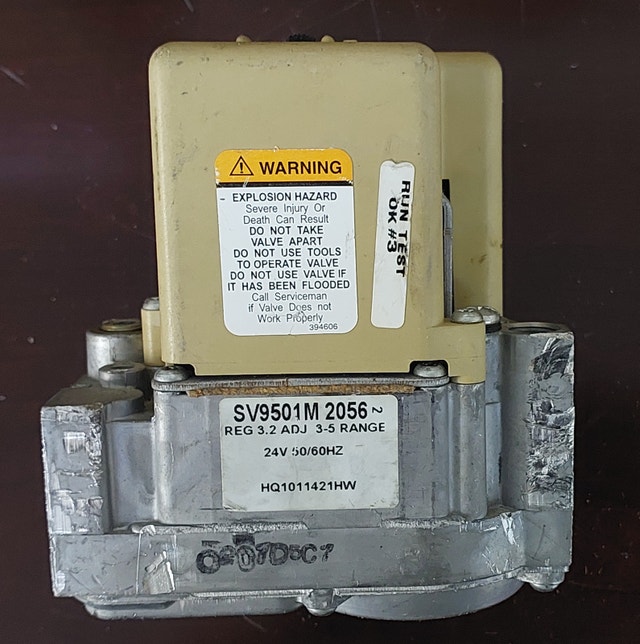

Gas Valve Specifications – Honeywell SV9501M2056 Model Number: SV9501M2056 OEM Reference: HQ1011421HW Manufacturer: Honeywell Valve Type: Single - Stage Gas Valve System Type: Intermittent Pilot (IP) with 100% Shutoff Control Voltage: 24V AC Frequency: 50/60 Hz Current Draw (Typical): • Valve Run: ~0.2 A • Igniter Output: ~1.25 A Gas Type: Natural Gas (convertible to LP – check kit availability) Regulator Setting (Factory): 3.2" WC Adjustable Pressure Range: 3.0" – 5.0" WC Max Inlet Pressure: 1/2 PSI Mounting Orientation: Horizontal (preferred), per appliance spec Ignition Trial Time: ~90 seconds (typical) Retry Delay: ~5 minutes (typical) Country of Origin: USA / Mexico Additional ID: SV9501 series, integrated with safety shutoff and ignition Compatible Replacement Models • Honeywell SV9501M2528 • Honeywell SV9500 Series (verify timing and range) • OEM Part: Replaces HQ1011421HW on Goodman / Amana systems • Functional match with select White-Rodgers 36G Series (check specs) Compatible Furnace Brands • Goodman • Amana • Janitrol • Daikin • Nordyne (check model crossover) Condition: Used - Like new Curbside pick up: Yes
