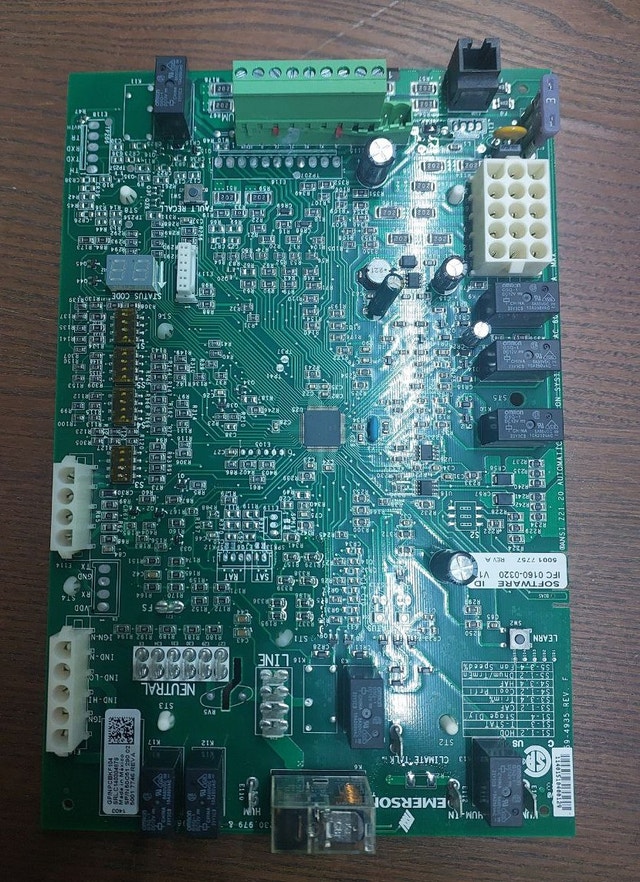

Emerson PCBKF104 Integrated Furnace Control Board

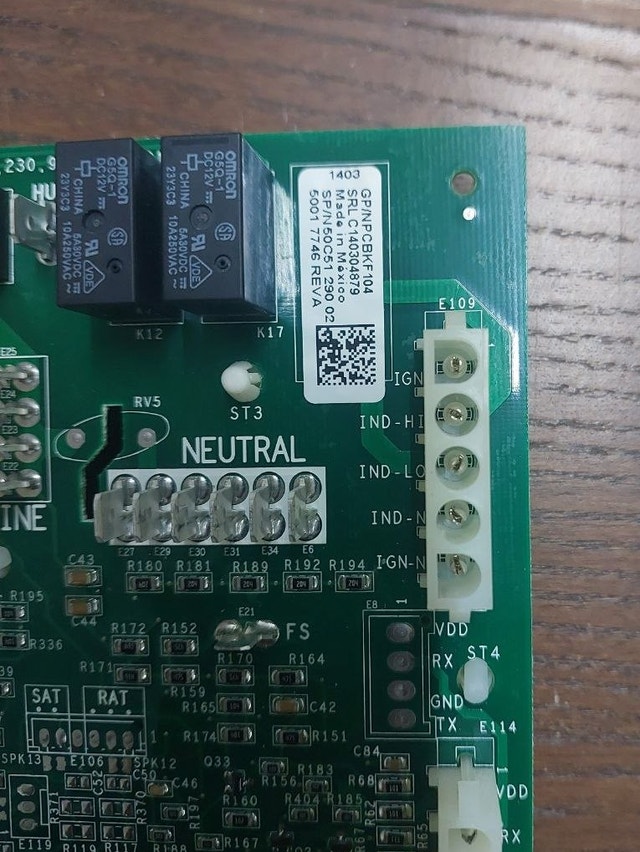

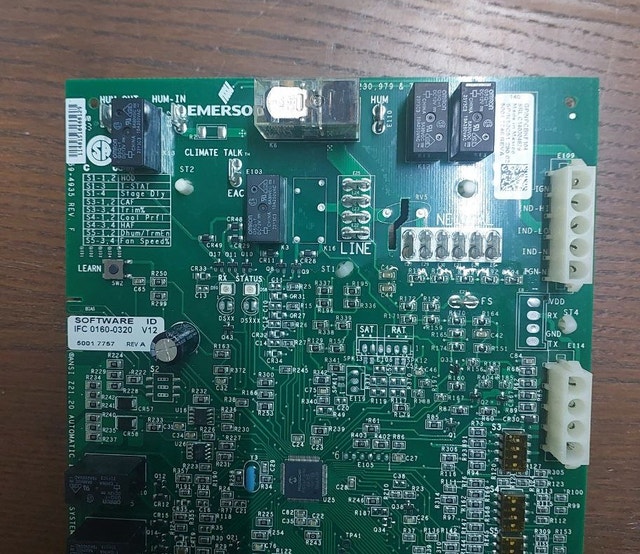

Emerson PCBKF104 Integrated Furnace Control Board – GPINPCBKF104 | ClimateTalk | Automatic Ignition Condition: New Availability: Ready for pickup / Fast response Key Specifications Manufacturer: Emerson Kit Number: PCBKF105 Board Part Number: GPINPCBKF104 Service Part Number (SP/N): 0531 280 02 Revision: 5001 7746 REV A Software ID: IFC 0160-0320 V1 Software Revision: 5001 7757 REV A Board Number: 59-4935 REV. F Component Type: Integrated Furnace Control (IFC) Board Communication Protocol: ClimateTalk® Ignition Standard: ANSI Z21.20 Automatic Ignition System Fuse: 3 Amp Automotive Blade Fuse Terminal Connections Low-Voltage Thermostat Terminal Block 9-pin thermostat connection Ignitor / Inducer Connector IGN-N – Ignitor Neutral IGN-L – Ignitor Line IND-N – Inducer Neutral IND-LO – Inducer Low Speed IND-HI – Inducer High Speed Communication Connector GND TX RX VDD 120V Line Voltage Connections LINE NEUTRAL (5-terminal neutral bank) HUM-IN HUM-OUT EAC (Electronic Air Cleaner) XFMR (Transformer) Harness Connector 12-pin Molex-style connector Main Features Genuine Emerson OEM Integrated Furnace Control Board ClimateTalk® communicating technology Built-in 2-digit LED Status Code Display Fault Recall diagnostic button Learn button for system configuration Multiple Omron industrial relays Replaceable 3A automotive blade fuse Electronic ignition control Variable inducer motor control Humidifier output Electronic air cleaner output Configuration Options This board includes multiple DIP switch banks for advanced setup and performance tuning. Adjustable settings include: Modulating furnace configuration Thermostat type selection Heating stage delay Cooling airflow (CFM) Heating airflow (CFM) Fan speed percentage Dehumidification control Cooling profile selection Compatibility Direct replacement for boards using: GPINPCBKF104 PCBKF105 0531 280 02 Commonly found in select high-efficiency furnaces manufactured by: Johnson Controls York Luxaire Coleman ⚠️ Before purchasing, verify: Part number Software version Connector layout Furnace model compatibility Applications High-Efficiency Gas Furnaces Modulating Furnaces Two-Stage Furnaces ClimateTalk Communicating Systems Integrated Furnace Controls (IFC) Why Buy This One? ✔ Genuine Emerson OEM control board ✔ ClimateTalk communicating technology ✔ Built-in diagnostics with LED status display ✔ Advanced configurable airflow and staging settings ✔ Heavy-duty Omron relays for reliable operation ✔ Tested and ready for installation Pickup Toronto / GTA Condition: New For Sale By: Owner Curbside pick up: Yes
