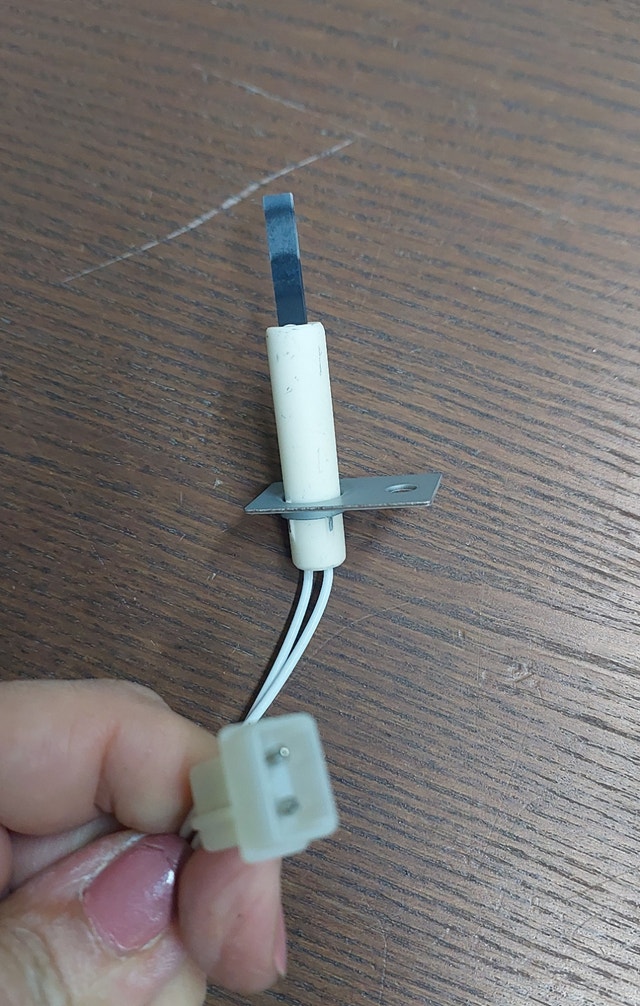

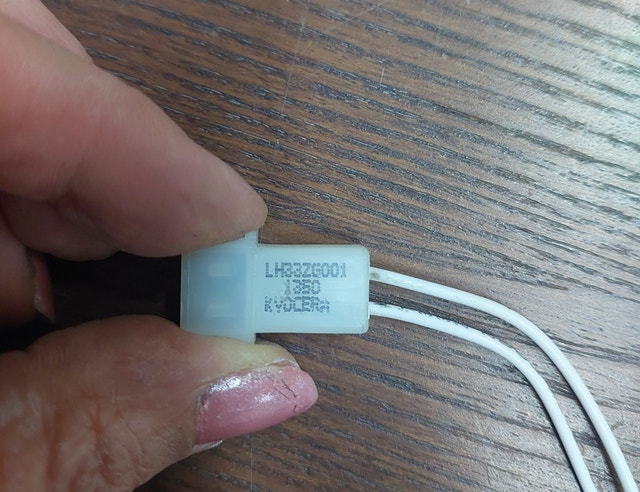

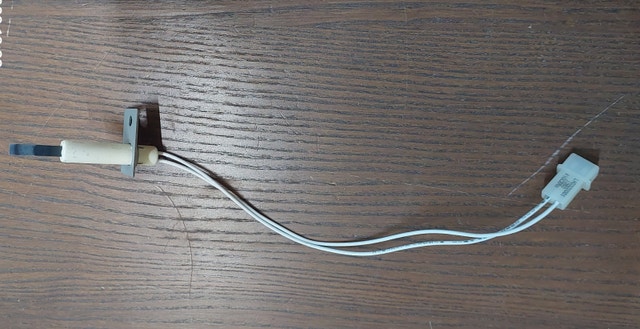

Kyocera LH33ZG001 Silicon Nitride Hot Surface Ignitor – 120V

Kyocera LH33ZG001 Silicon Nitride Hot Surface Ignitor – 120V | Furnace Igniter | Tested Condition: Used – Clean & Fully Functional Availability: Ready for pickup / fast response Key Specifications: Brand: Kyocera Model: LH33ZG001 Type: Hot Surface Ignitor (HSI) Element Material: Silicon Nitride Operating Voltage: 120V AC Element Style: Flat Blade Design Connector Type: 2-Pin White Plastic Receptacle Mounting: Single-Hole Metal Bracket Base Material: High-Temperature Ceramic Ignition Temperature: Approximately 1,800°F – 2,500°F Functional Overview: The Kyocera LH33ZG001 Hot Surface Ignitor is used in modern gas furnaces to ignite the main burners without the need for a standing pilot flame. Ignition Sequence: Thermostat calls for heat. Control board energizes the ignitor. Silicon nitride element rapidly heats to a glowing temperature. Gas valve opens. Gas ignites from the hot ignitor surface. Flame sensor confirms ignition. Ignitor powers off until the next heating cycle. Silicon Nitride Advantage: More durable than older silicon carbide ignitors Faster heat-up time Lower energy consumption Better resistance to vibration and thermal shock Longer service life Preferred upgrade by many HVAC technicians Compatibility: Residential gas furnaces High-efficiency heating systems OEM replacement for applications using Kyocera LH33ZG001 ignitors ⚠️ Verify ignitor dimensions, mounting bracket, and connector style before purchase. Applications: Gas Furnaces Unit Heaters Boilers Gas-Fired HVAC Equipment Why Buy This One? ✔ Genuine Kyocera silicon nitride ignitor ✔ Faster and more reliable ignition ✔ Longer lifespan than standard carbide ignitors ✔ Tested & ready to install ✔ Excellent OEM replacement option Handling Notice: Handle only by the ceramic base or mounting bracket. Avoid touching the ignitor element directly. Keep the ignitor clean and free from oils or contaminants. Pickup: Toronto / GTA
