Gas Valve Specifications – White-Rodgers 36J54-202 - GCV076

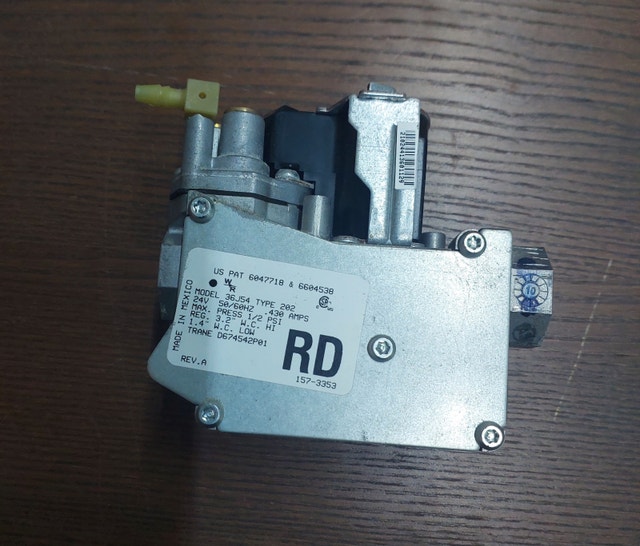

Gas Valve Specifications – White-Rodgers 36J54-202 (Trane OEM) Condition: Used – Cleaned and Fully Functional Model: 36J54-202 Manufacturer: White-Rodgers (Emerson Climate Technologies) Product Type: Combination Gas Valve – Furnace / Heating Control Series / Type: 36J54 | Type 202 Stage: Tow-Stage Gas Valve Power Input: 24V AC Frequency: 50 / 60 Hz Current Rating: 0.43 Amps Gas Pressure Ratings: Maximum Inlet Pressure: 1/2 PSI Factory Regulated Outlet Pressure: 3.2" W.C. (Natural Gas) Low Pressure Tap: 1.4" W.C. High Pressure: Factory regulated (single-stage; no second stage) Patents / Identification: U.S. Patents: 6,047,718 & 6,604,538 OEM Application: Trane Trane Part Number: D674542P01 Approval / Marking: SP / VUS Revision: Rev A Internal Reference: 157-3353 Serial / Code: 21024413601129 Country of Manufacture: Made in Mexico Electrical & Gas Control Notes: Single-stage on/off operation (one heat call) Standard 24V AC Class 2 control circuit Non-modulating gas valve Designed for intermittent pilot or direct ignition systems Factory-set regulator at 3.2" W.C. Common Applications: Trane residential gas furnaces Single-stage forced-air heating systems OEM replacement where 36J54-202 / D674542P01 is specified Condition: Used - Like new For Sale By: Owner Curbside pick up: Yes Cash accepted: Yes
