Honeywell ST9160B1084 Furnace Control Board | 1014460

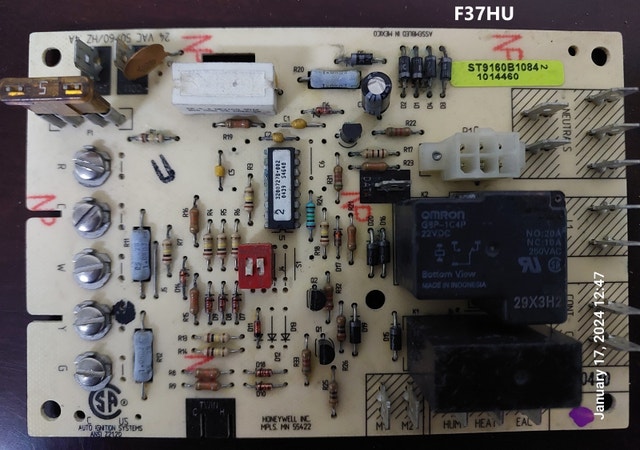

Honeywell ST9160B1084 Furnace Control Board | 1014460 | OEM Single-Stage Integrated Furnace Control (IFC) Board | Tested Condition: Used – Tested & Fully Functional Availability: Ready for Pickup Key Specifications Manufacturer: Honeywell OEM Part Number: ST9160B1084 Secondary Part Number: 1014460 Made In: Mexico Image Label: F37HU Component Type: Integrated Furnace Control (IFC) Board System Type: Single-Stage Gas Furnace Control Board Control Voltage: 24 VAC Fuse: 5 Amp Automotive Blade Fuse Terminal Connections Thermostat Connections Supports single-stage heating: R – 24VAC Power C – Common W – Heat Y – Cooling G – Indoor Fan Line Voltage Connections L1 NEUTRALS CONT (Continuous Fan) Blower Connections HEAT M1 M2 Accessory Outputs HUM – Humidifier EAC – Electronic Air Cleaner Harness Connector 6-Pin Main Harness Connector Communication / Service DATA Communication Header TWIN Connection Major Components Main Power Relay Omron G9P-1C4P Coil Voltage: 22VDC Form C Contacts 20A Normally Open 10A Normally Closed Rated 250VAC Additional Relay Heavy-duty OEM blower/output relay Electronic Components Honeywell control microprocessor Two-position configuration DIP switch 240Ω ceramic power resistor Replaceable 5A automotive fuse Integrated ignition and blower control circuitry Features ✔ Genuine Honeywell OEM furnace control board ✔ Designed for single-stage gas furnaces ✔ Controls heating, cooling, blower, and ignition sequence ✔ Humidifier output ✔ Electronic Air Cleaner output ✔ Twin furnace capability ✔ Replaceable 5A fuse ✔ Tested and ready for installation Compatibility Direct replacement numbers: ST9160B1084 1014460 Commonly found in select residential single-stage furnaces from: Heil Tempstar Comfortmaker KeepRite Arcoaire ICP ⚠️ Always verify your furnace model number, connector layout, and original board part number before purchasing. Why Buy This Board? ✔ Genuine Honeywell OEM replacement ✔ Fully tested and ready to install ✔ Reliable ignition and blower control ✔ Supports heating, cooling, and fan operation ✔ Humidifier and EAC accessory outputs ✔ Ideal replacement for failed OEM control boards Pickup Toronto / GTA Fast response. Local pickup available.
