Gas Valve Specifications – White-Rodgers 36G54 Type 238 - GCV080

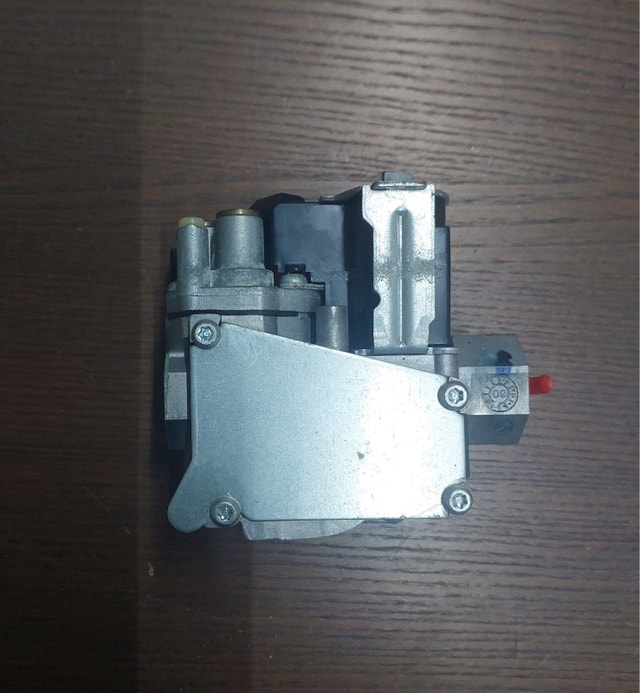

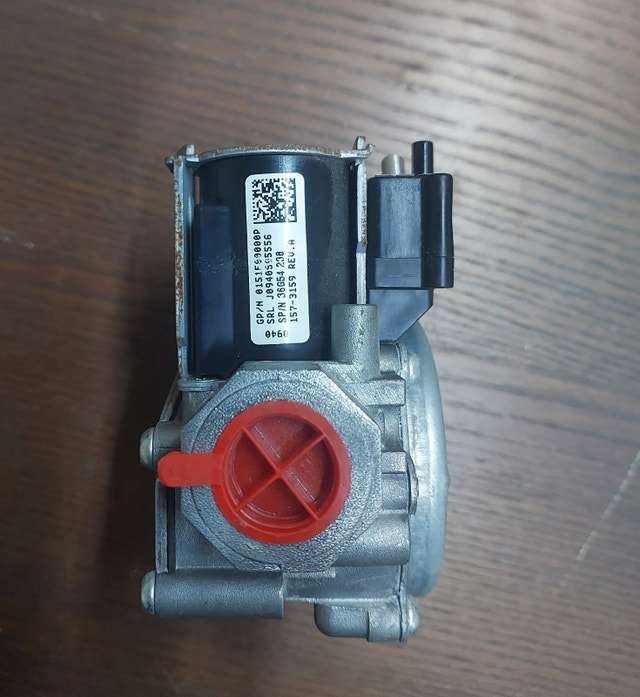

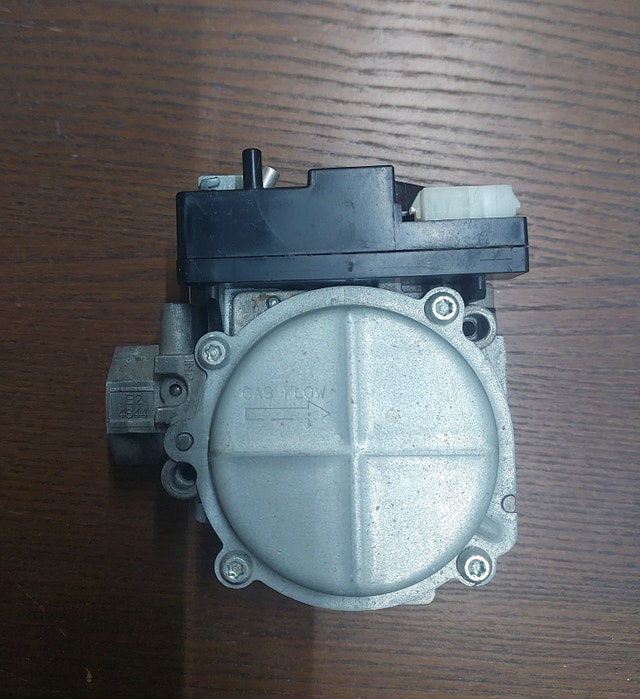

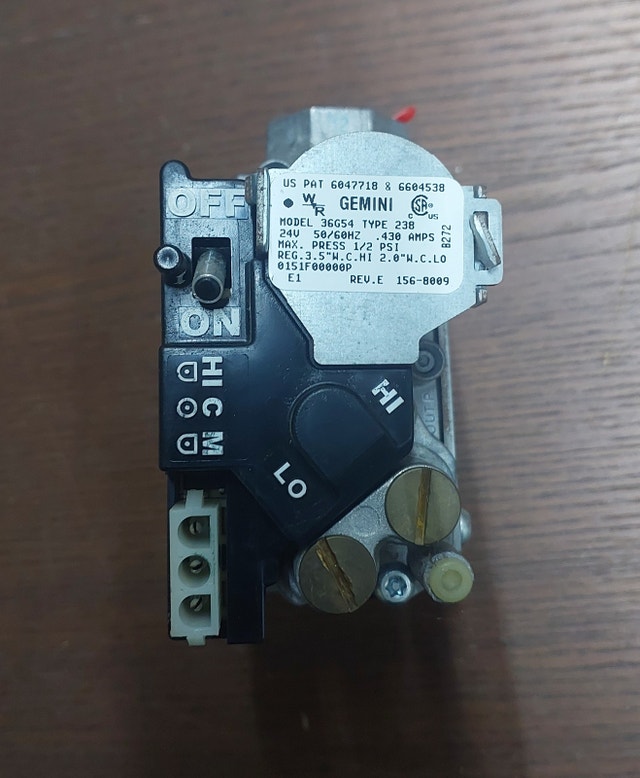

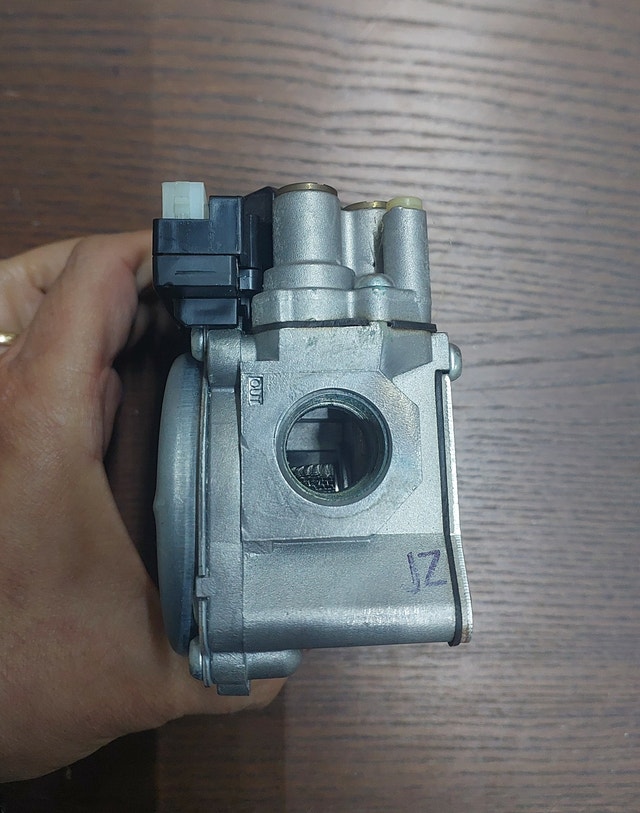

Gas Valve Specifications – White-Rodgers 36G54 Type 238 Condition: Used – Cleaned and Fully Functional Model: 36G54 Manufacturer: White-Rodgers (Emerson) Product Type: Combination Gas Control Valve – Two-Stage Power Input: 24V AC, 50/60 Hz Current Rating: 0.430 A Maximum Inlet Pressure: 1/2 PSI Regulator Output Pressure: • High Fire: 3.5" WC • Low Fire: 2.0" WC Valve Series: Gemini Type: 238 Patents: US PAT 6,047,718 & 6,604,538 OEM / Reference Numbers: • 0151F00000P • 156-8009 Revision: Rev. E Date / Batch Code: 8272 Internal Code: E1 Electrical & Connectivity Notes: Designed for standard 24V AC HVAC control circuits Two-stage gas valve with integrated pressure regulator Compatible with direct ignition furnace systems Manual ON/OFF control with safety shutoff Common Applications: Residential gas furnaces (two-stage heating) Forced-air heating systems using Gemini series valves OEM replacement for White-Rodgers 36G54 series gas controls Condition: Used - Like new For Sale By: Owner Curbside pick up: Yes
